Pattern OLV-W

Pattern OLV-W
£335.00 GBP
Shipping calculated at checkout.
Product variant

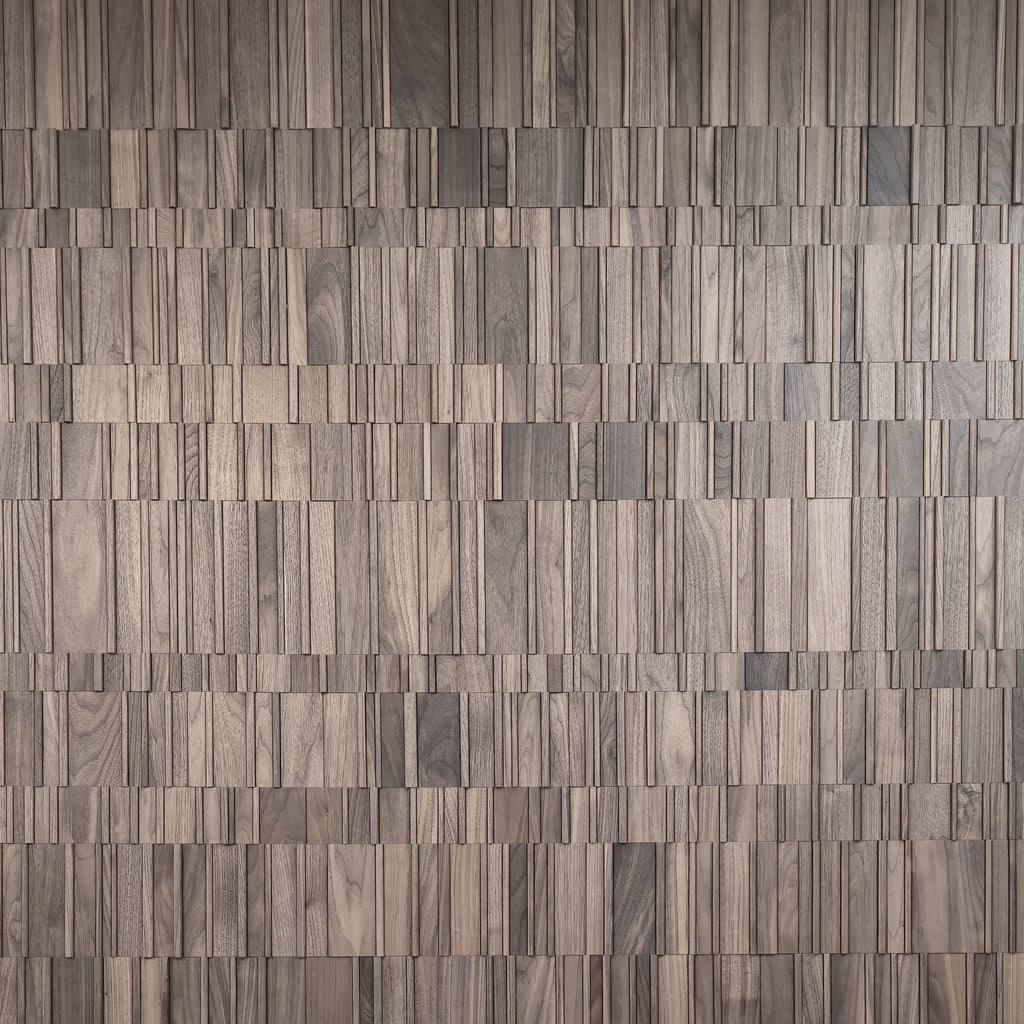

Architectural mosaic wall tiles in random linear pattern

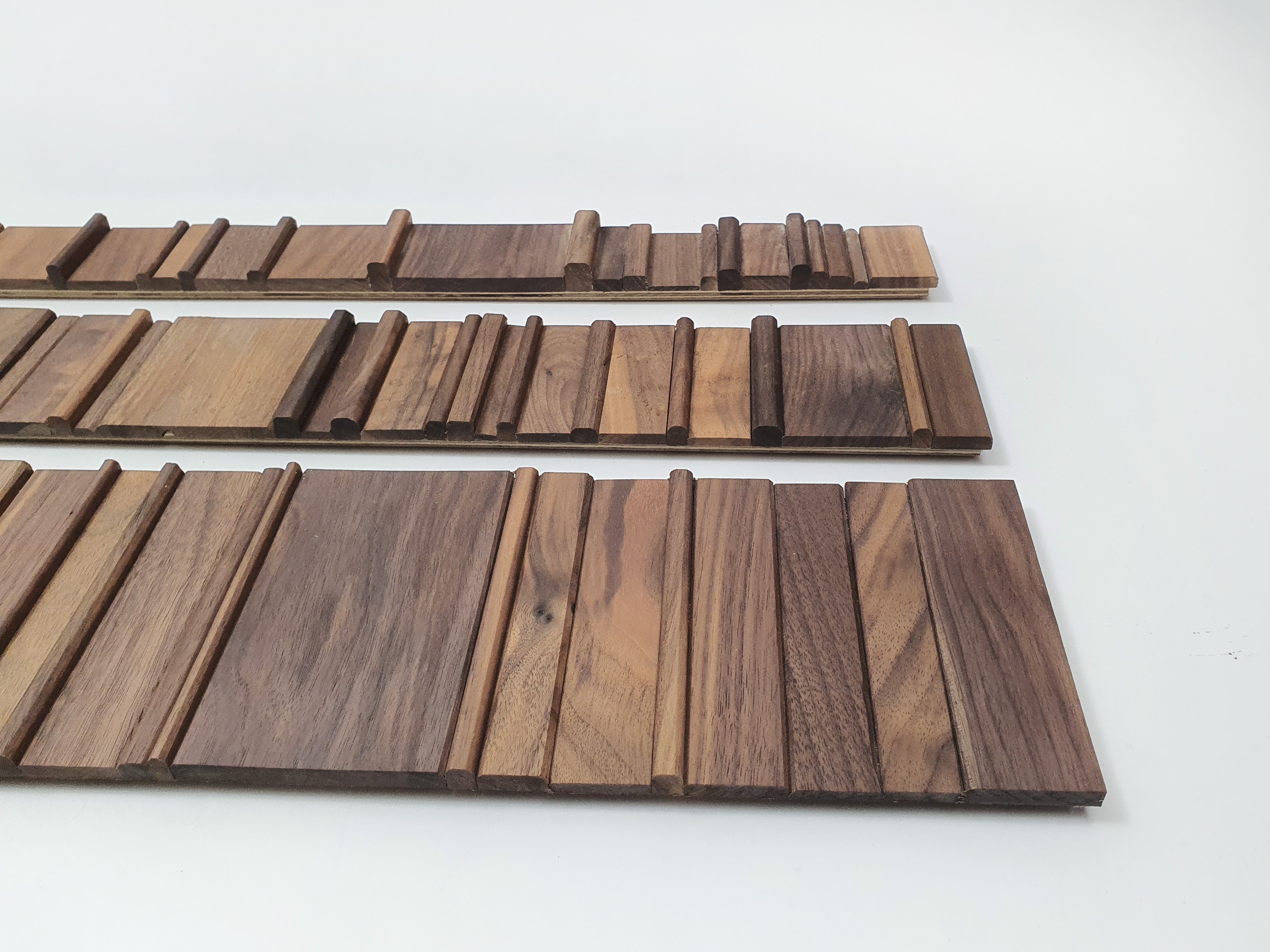

Handcrafted from solid walnut strips of varying widths and thicknesses, each element is bevelled, sanded, and assembled on a plywood base  ready to be glued to a wall or any other flat surface. Finished with a durable, high-performance wood oil to ensure longevity and protect the wood.

DIAMENSIONS:

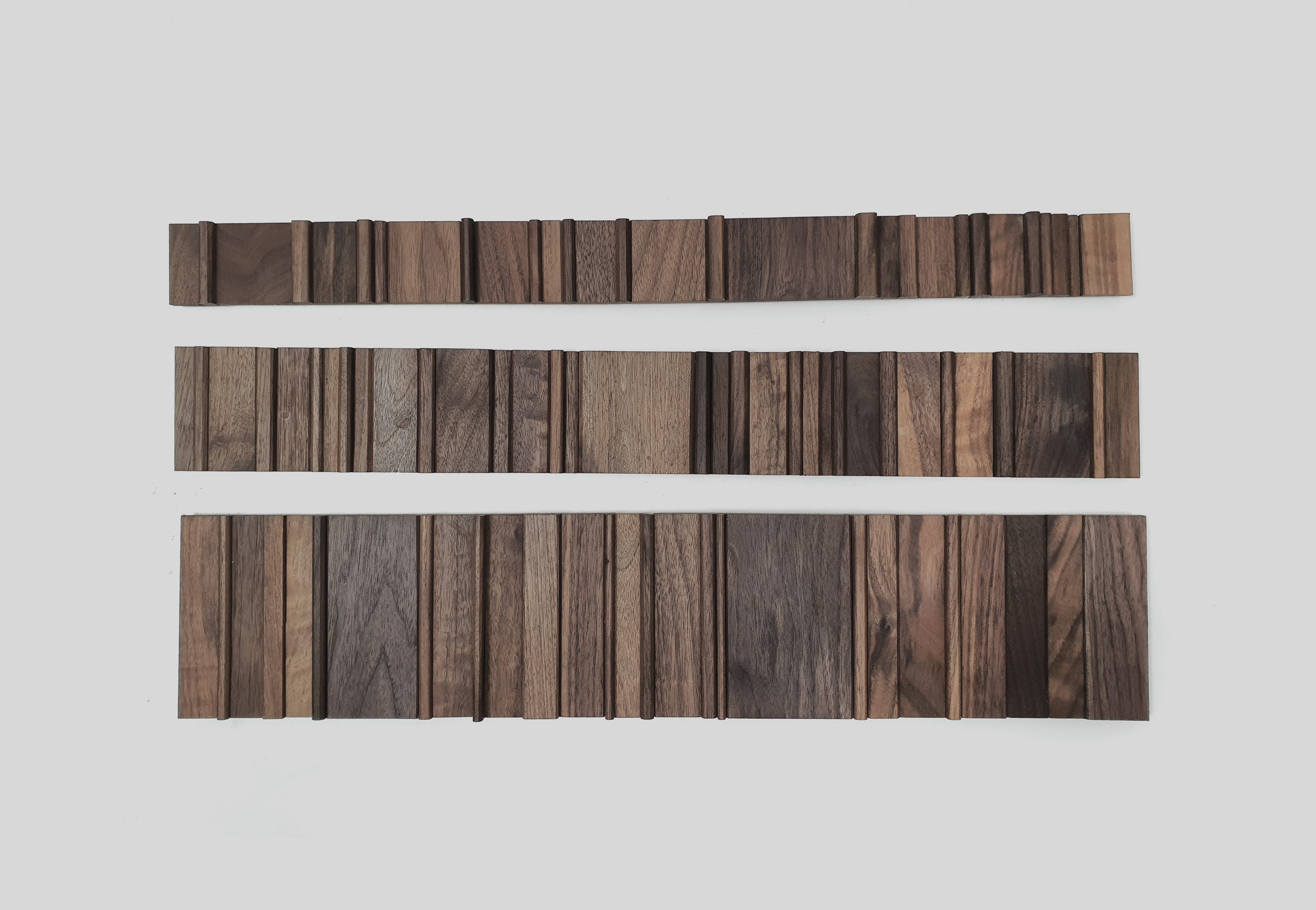

the pattern has six widths of 50, 75, 100, 125, 150 and 200mm, the length is 610 mm (±5). Tiles are made to measure and actual quantities of each size will depend on the installation area and pattern orientation. (widths of the tiles can be customised, please contact us for more information)

SPECIFICATIONS:

OLV-W : Base option

  • Face material: random strips of 4 - 15 mm thick solid walnut
  • Element density - 400 per square meter
  • Weight: 10kg/m² (±0.5kg)
  • Finish: Semimat Hard wax oil / Danish oil (optional UV protection)
  • Base: 6.5mm birch plywood (optional 7mm lightweight poplar plywood)
  • Glue: MS Polymer

 OLV-W-FR : Fire retardant

  • Finish: Envirograf® QVFR 3 part system giving class 0 and class 1 EU SBI/B/s1/do and 20 minutes of fire protection. Durable top coat with UV protection. Matt.
  • Base: 7mm poplar plywood, FR class 1B-s1,d0 EN13501.
  • Glue: FR MS Polymer

OLV-W-MR : Moisture resistant

  • Finish: Base coat of Osmo Wood Protector, two top coats of  semimat Osmo Hard Wax Oil (optional UV protection)
  • Base: 6 or 9mm marine (or birch) plywood, sealed with a PVA coat.
  • Glue: D3 PVA
  • suitable for interior areas where there is frequent, short term exposure to moisture and high humidity such as kitchens and bathroom applications in zones 2 and 3



OPTIONSAL WALL PANEL - Made to measure large wall mountable panels are assembled on a 12 or 15mm thick plywood core. max size 1200 x 600 mm



Production time: approximately 1 day per square metre

    We usually have small quantity available for immediate dispatch

    We delivery to most countries, please contact us for an accurate quote.

    These tiles can be manufactured from wood species and colours of your choice.

    Check out Oak version

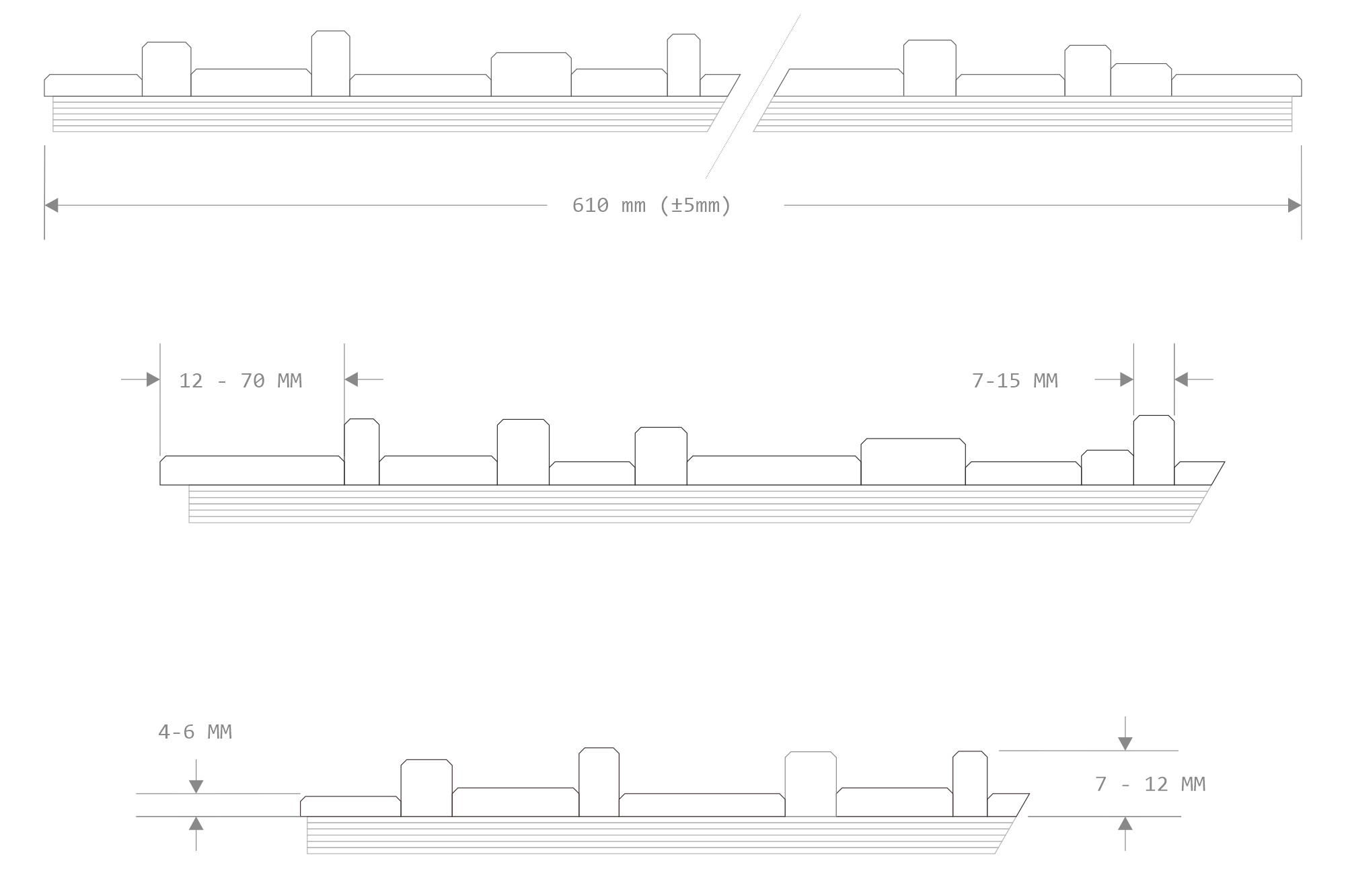

    Dimensions

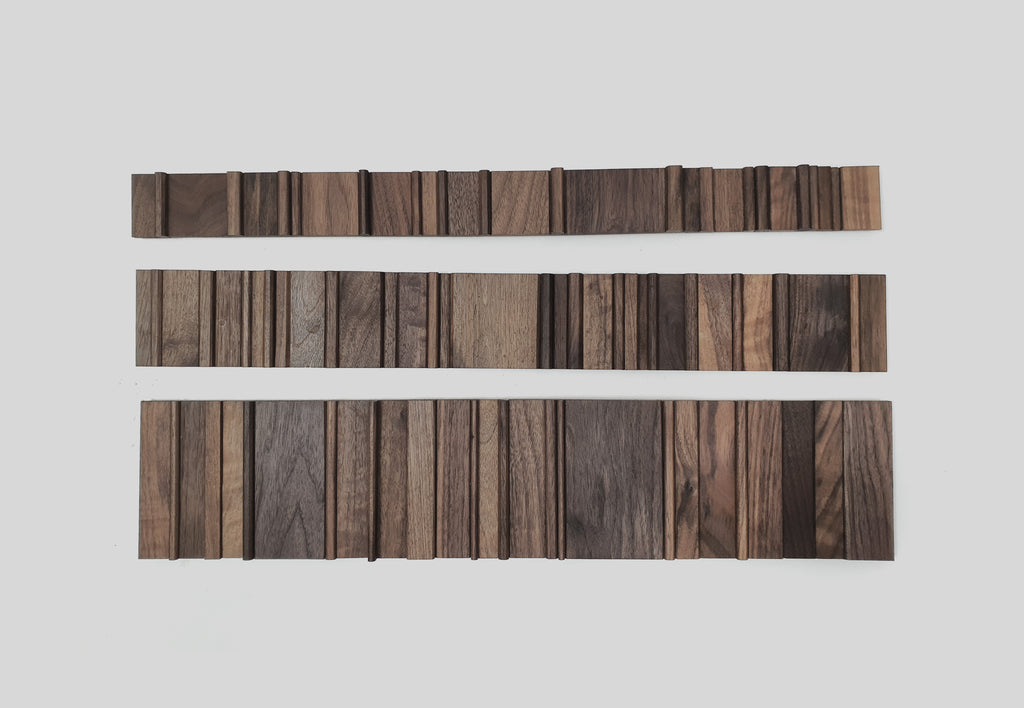

    • Module length: 610 mm (±5).
    • Module width: 50, 75, 100, 125, 150 and 200mm
    • Face material: random strips of 4 - 12 mm thick solid hardwood
    • Element density - 400 per square meter
    • Base: 6.5mm birch plywood

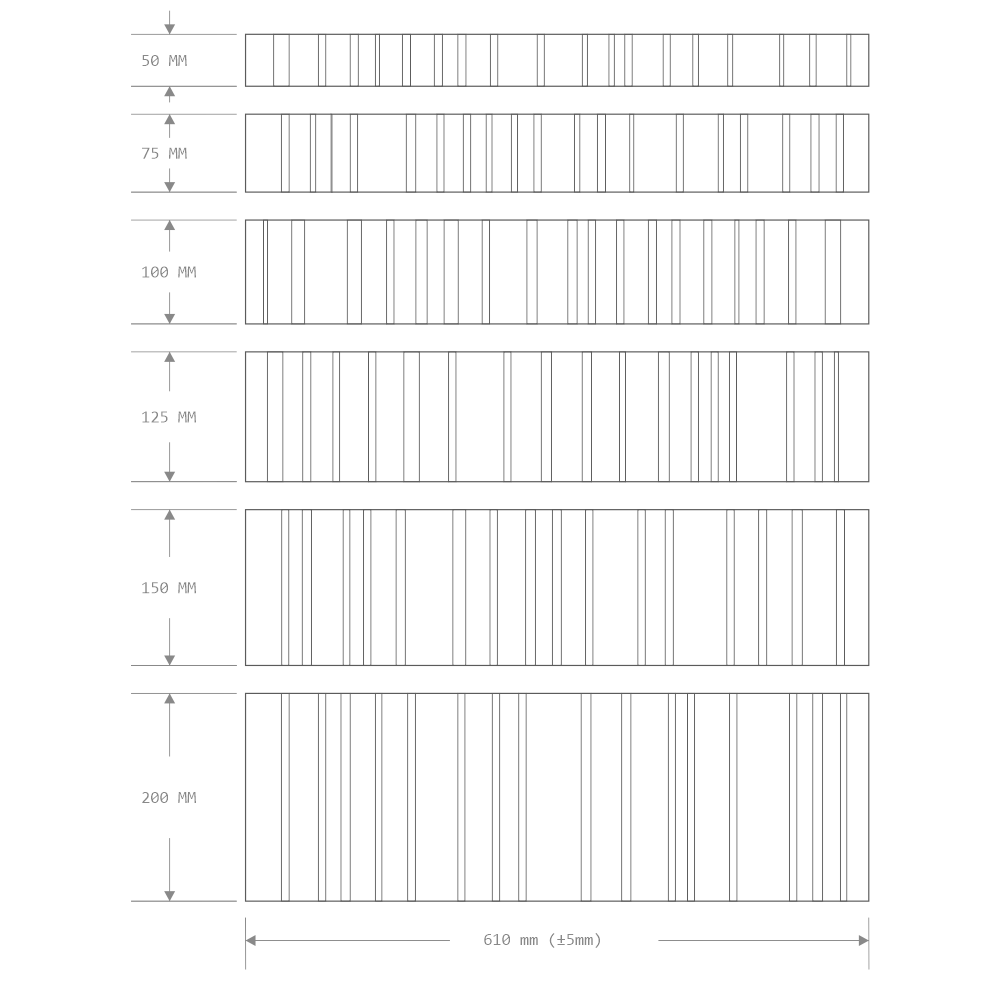

    Modules

    Specialist tiles

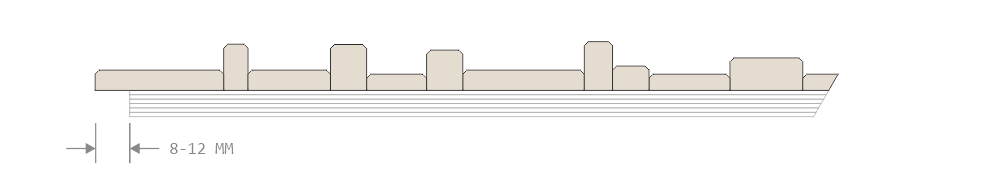

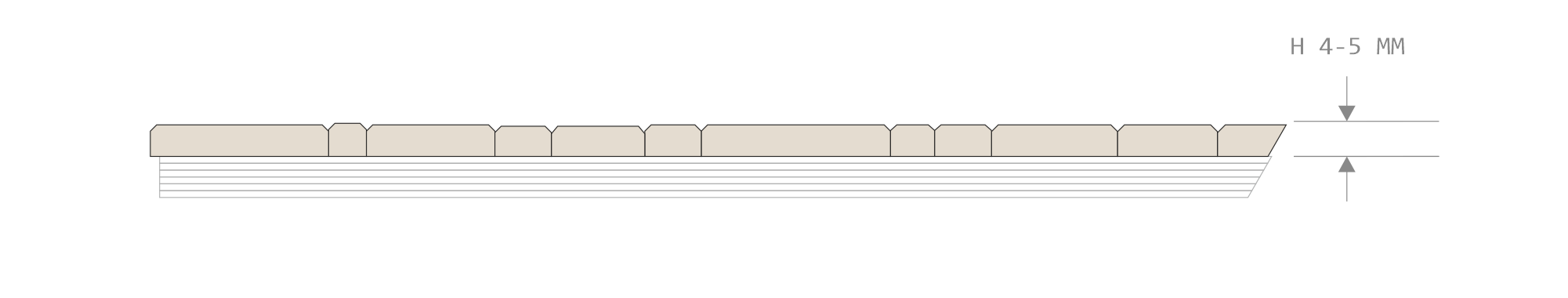

    Flat tiles:
    designed for installation in areas with outlets requiring flush mounting

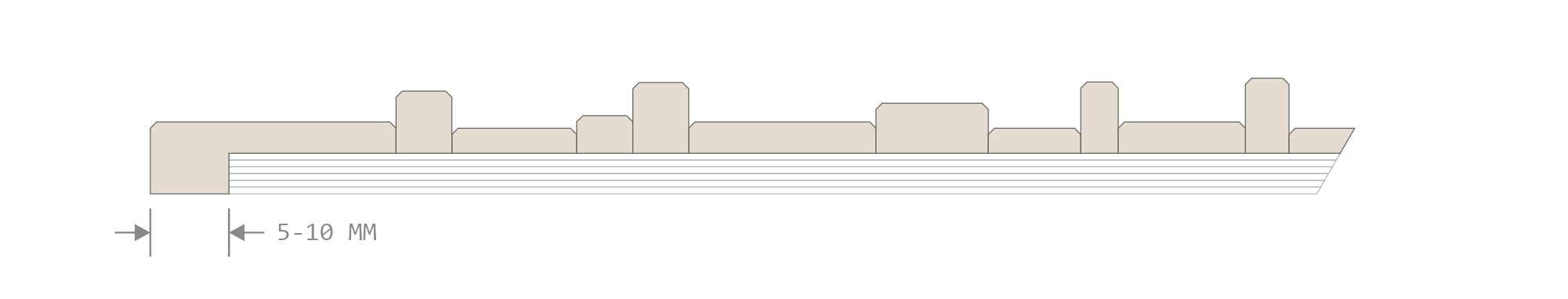

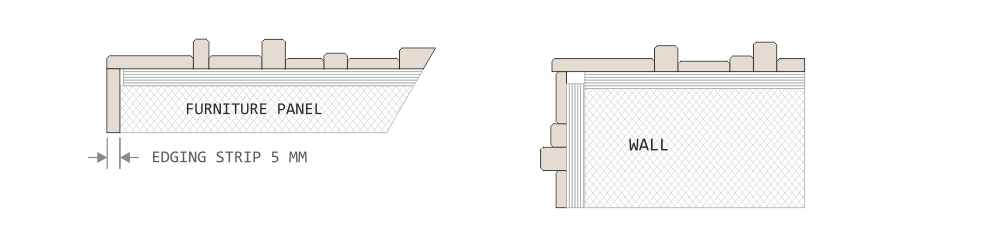

    Termination tiles: created as end tiles to conceal the base plywood in absence of end trim.

    Installation patterns

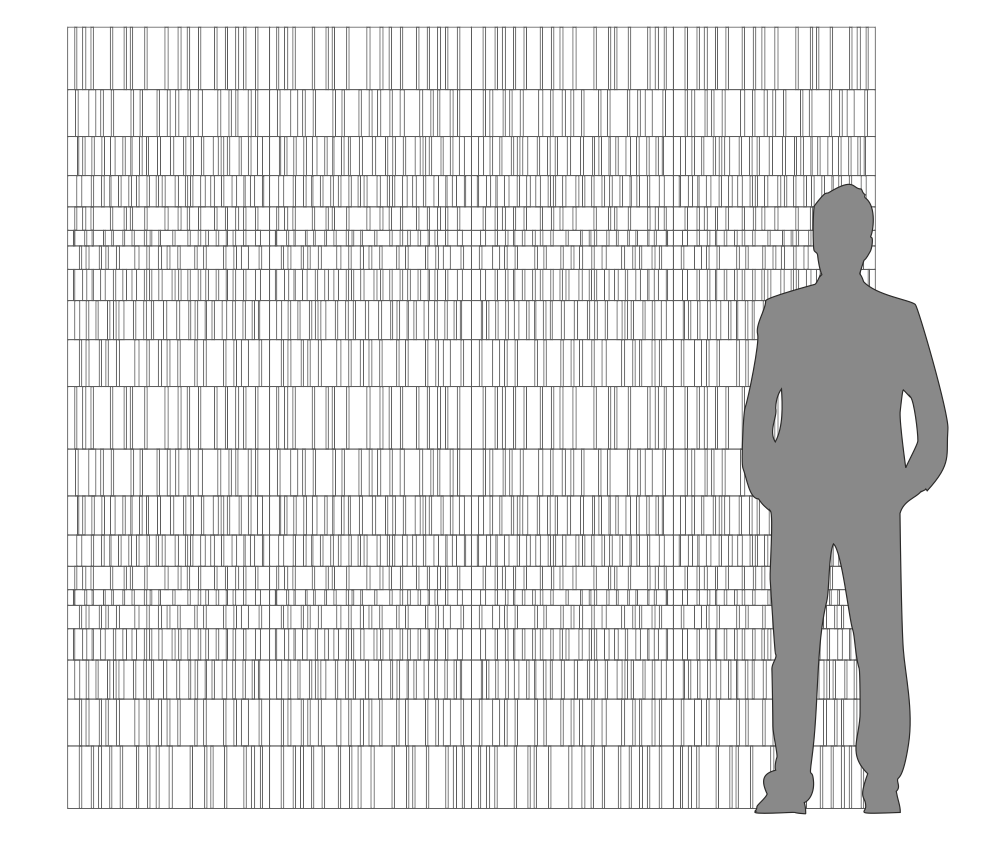

    Symethrical

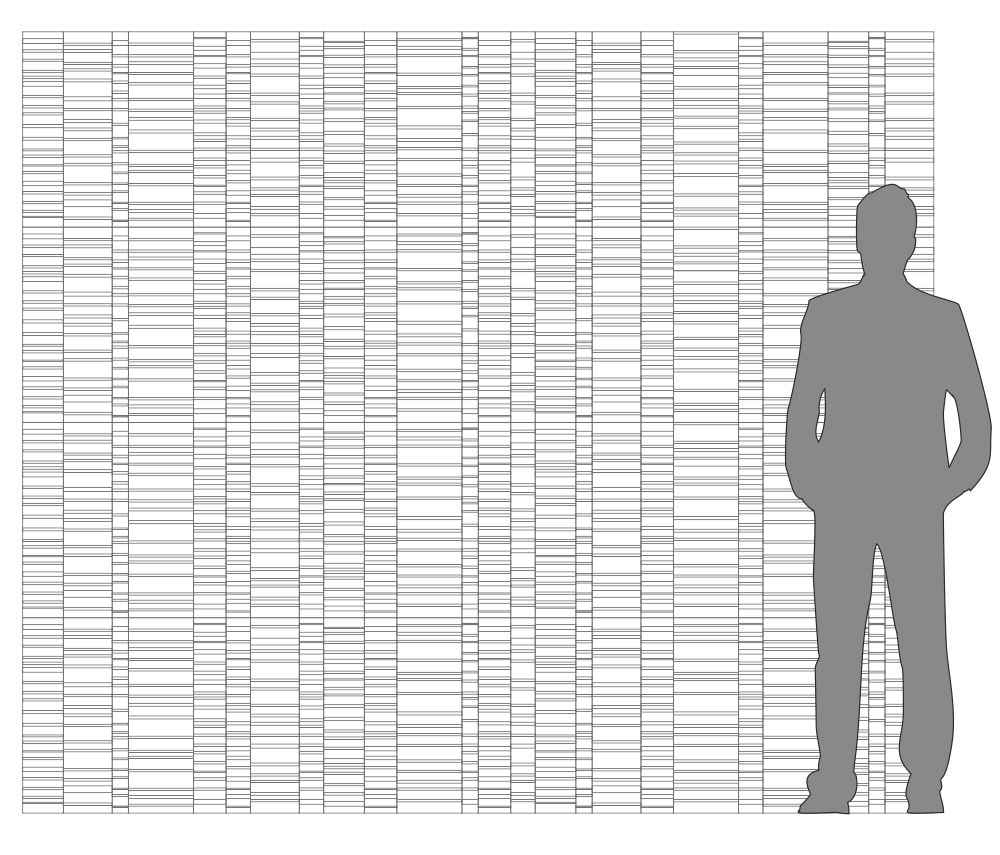

    Randomised

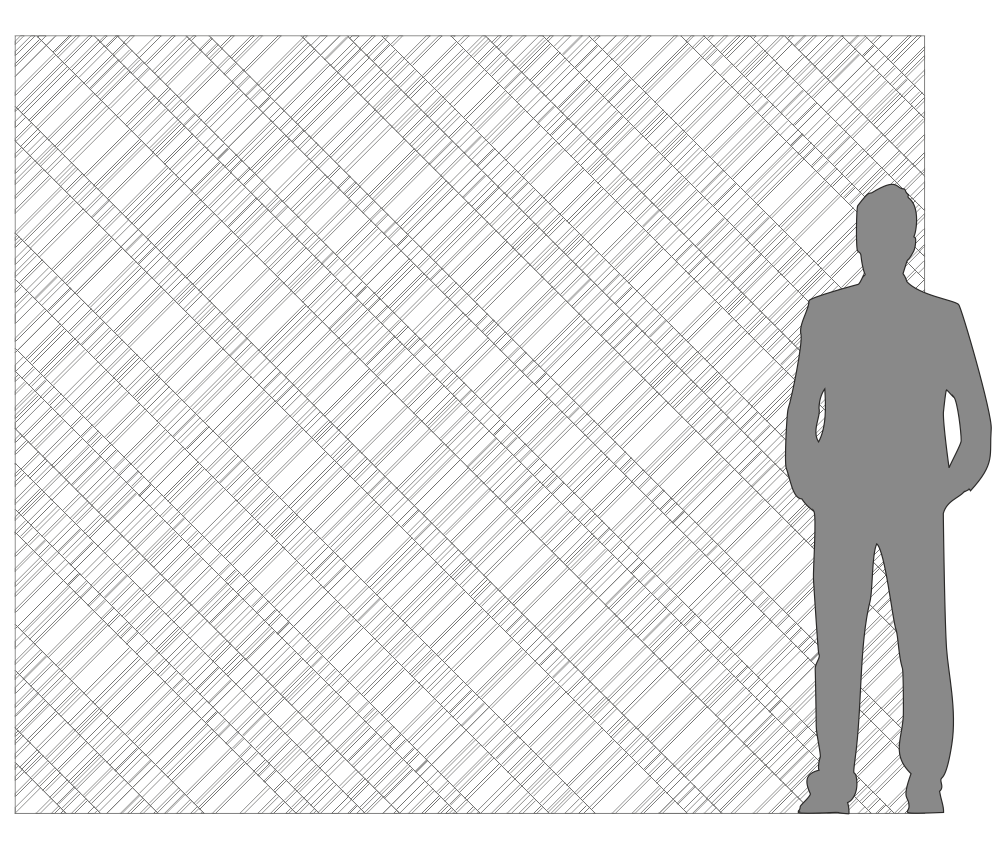

    Diagonal

    Handmade in the Royal Town of Sutton Coldfield, England.
