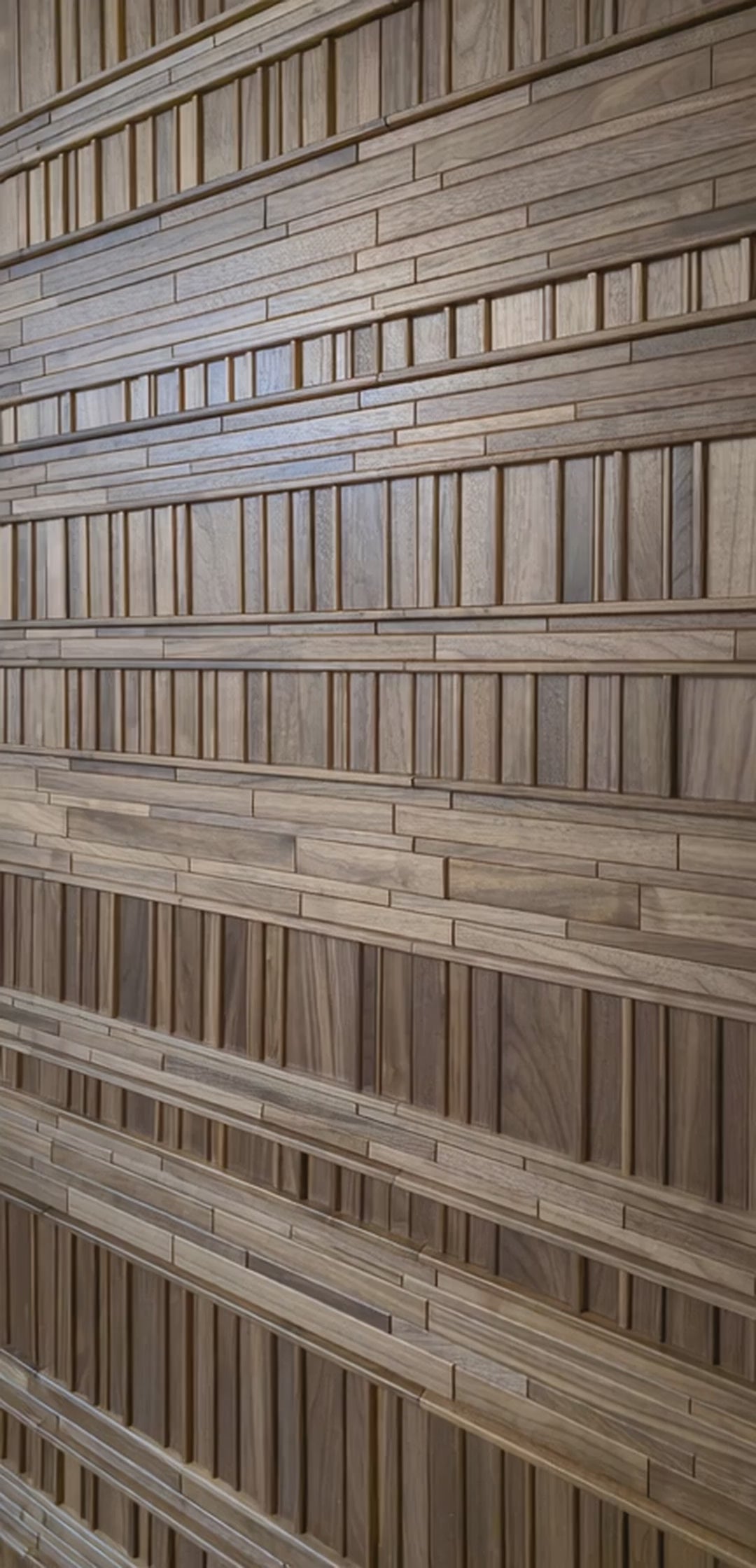

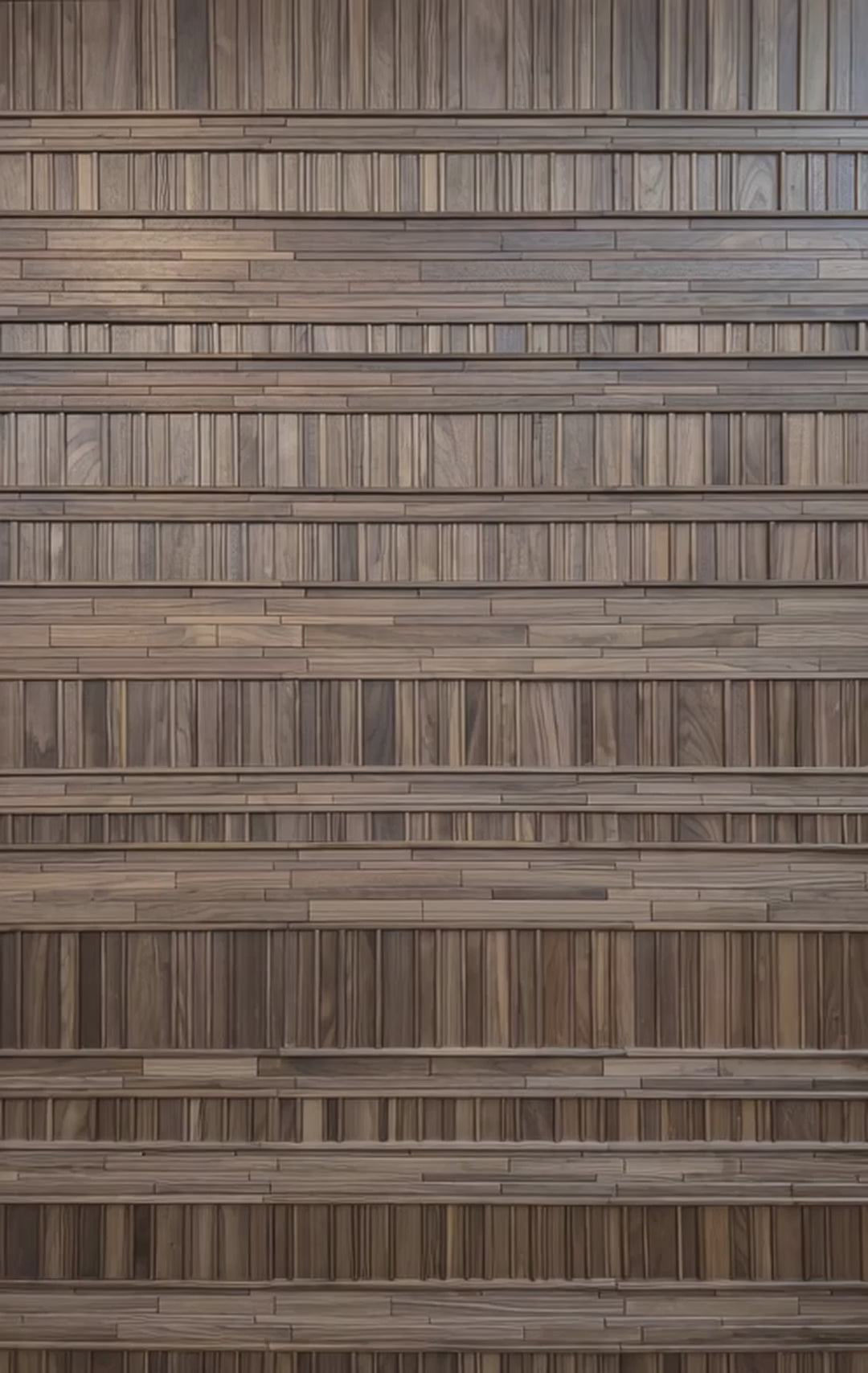

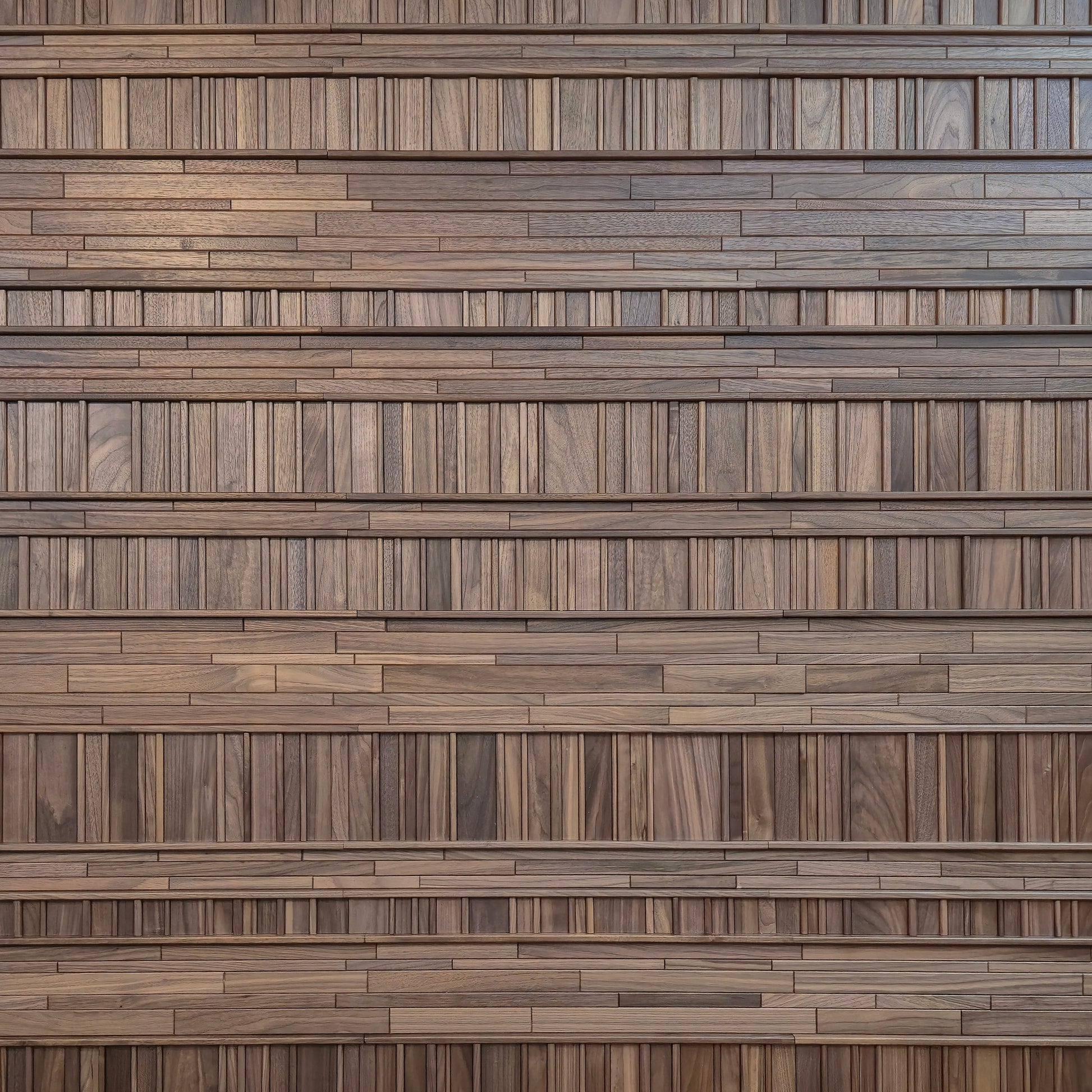

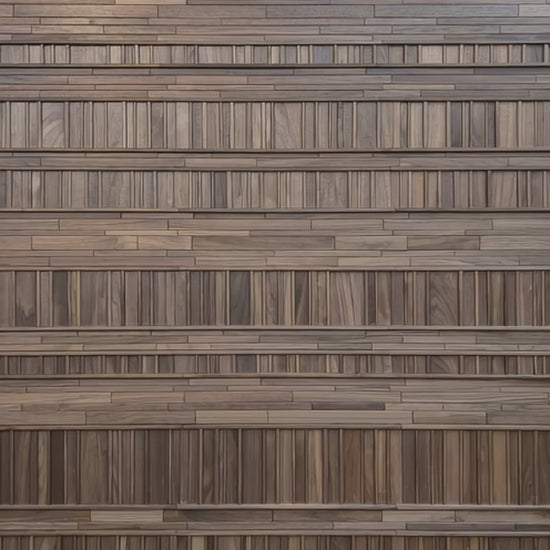

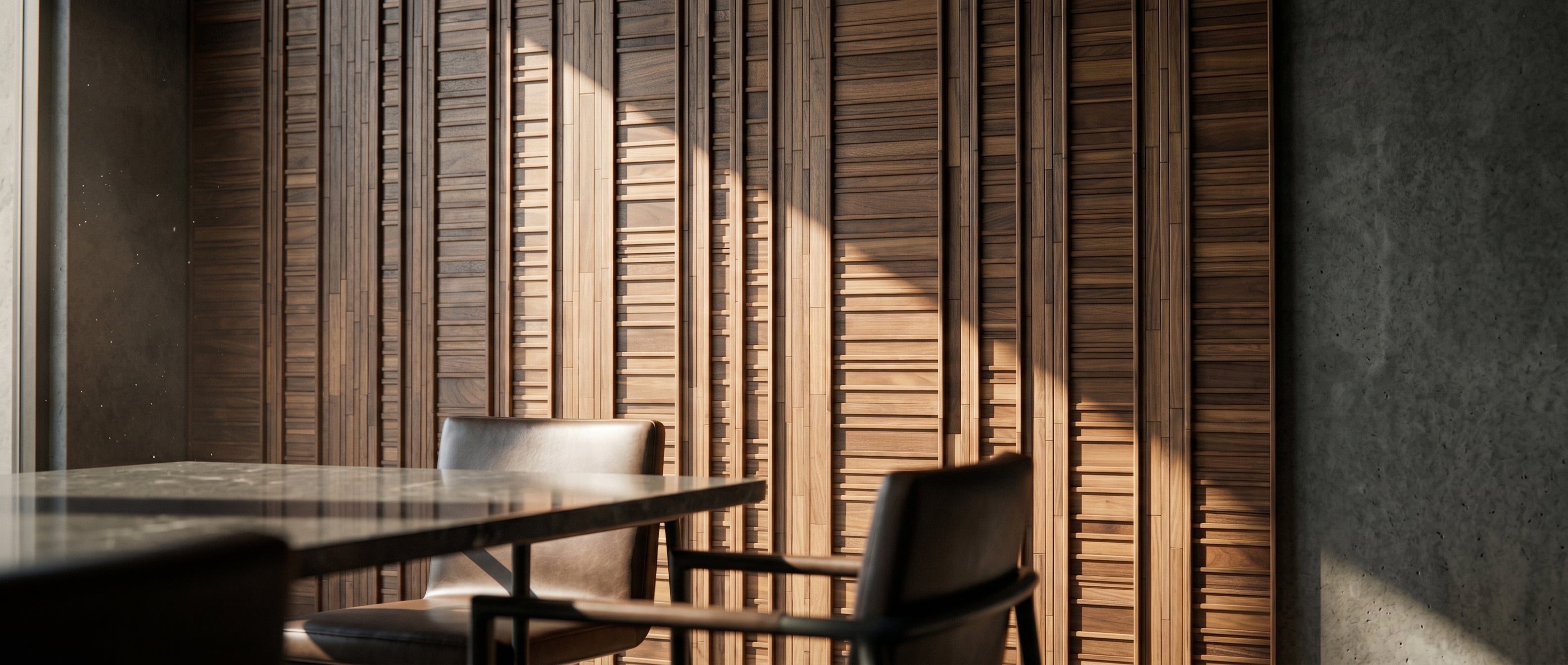

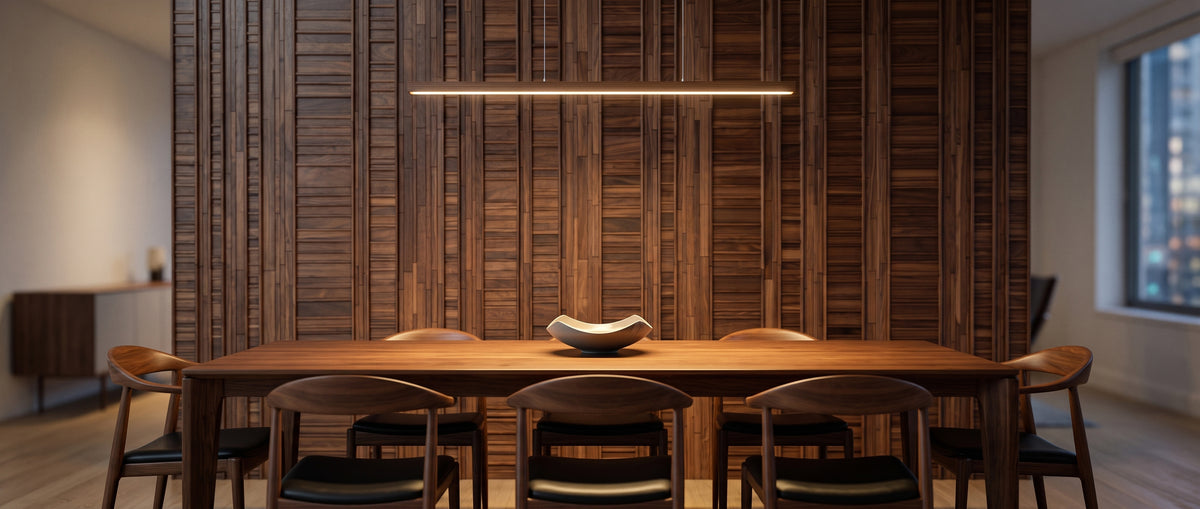

Architectural walnut wall panels with a structured pattern of vertical and horizontal lines.

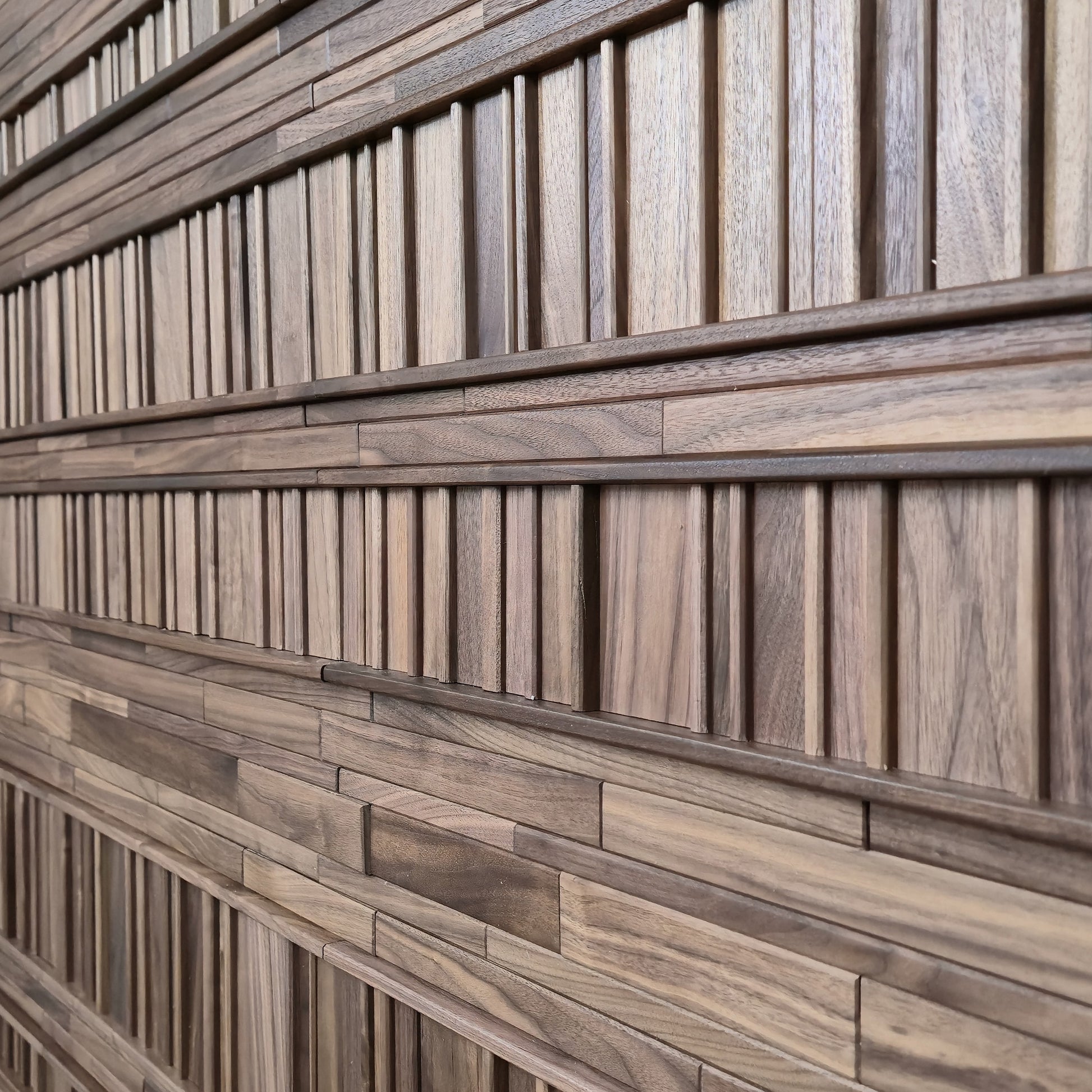

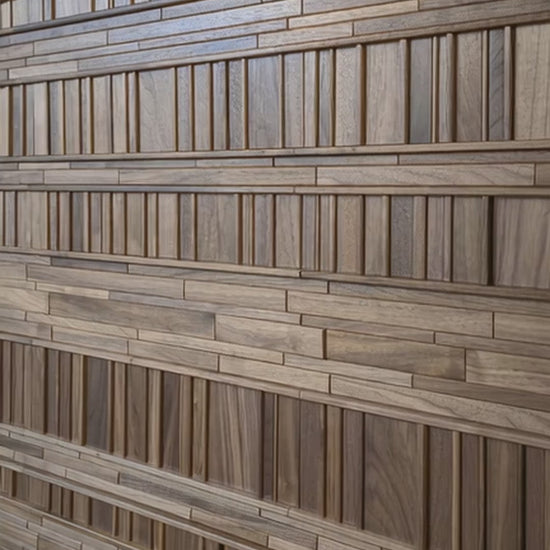

Handcrafted from solid walnut strips of varying widths and thicknesses, each element is bevelled, sanded, and assembled on a plywood base ready to be glued to a wall or any other flat surface. Finished with a durable, high-performance wood oil.
DIAMENSIONS:

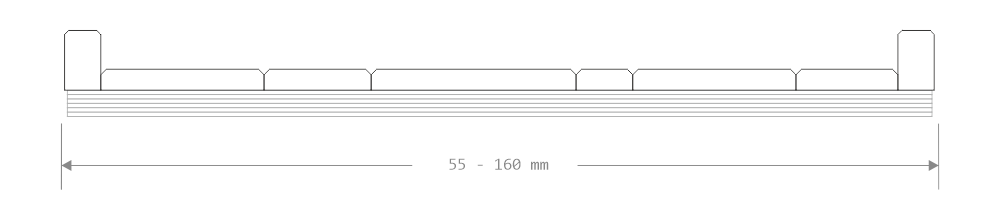

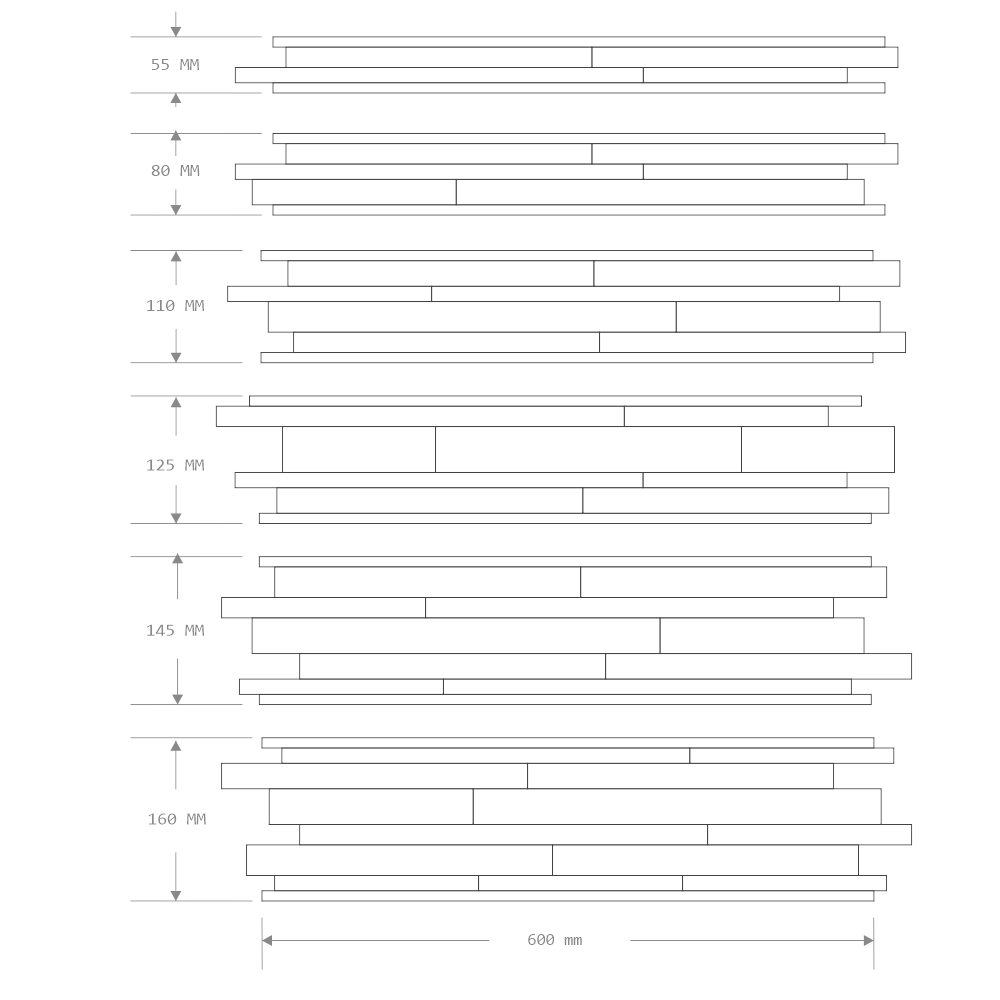

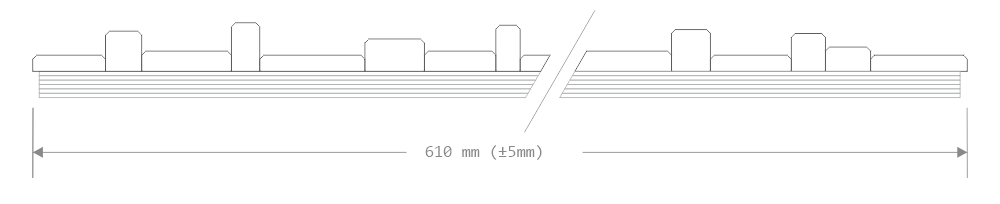

The design is created with two types of tiles: reticular tiles that create the rows with vertical lines, while rows with horizontal lines are made of interlocking tiles. Six row sizes of 50, 75, 100, 125, 150 and 200mm, the length of each tile is 610 mm (±5).
Tiles are made to measure and the actual quantities of each size will depend on the installation area and pattern orientation. (Widths of the tiles can be customised; please contact us for more information).
SPECIFICATIONS:
- Face material: solid walnut strips with random widths and thicknesses
- Standard tile length: 610mm (±5mm tolerance)
- Standard row sizes: 50, 75, 100, 125, 150, and 200mm

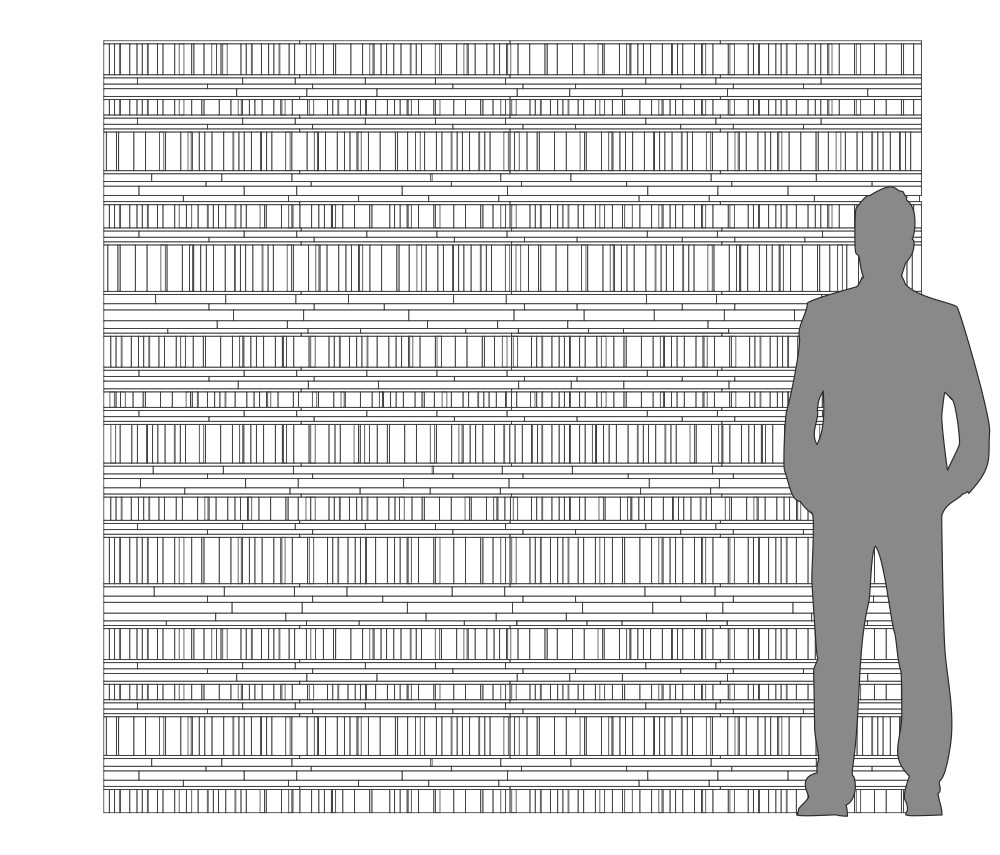

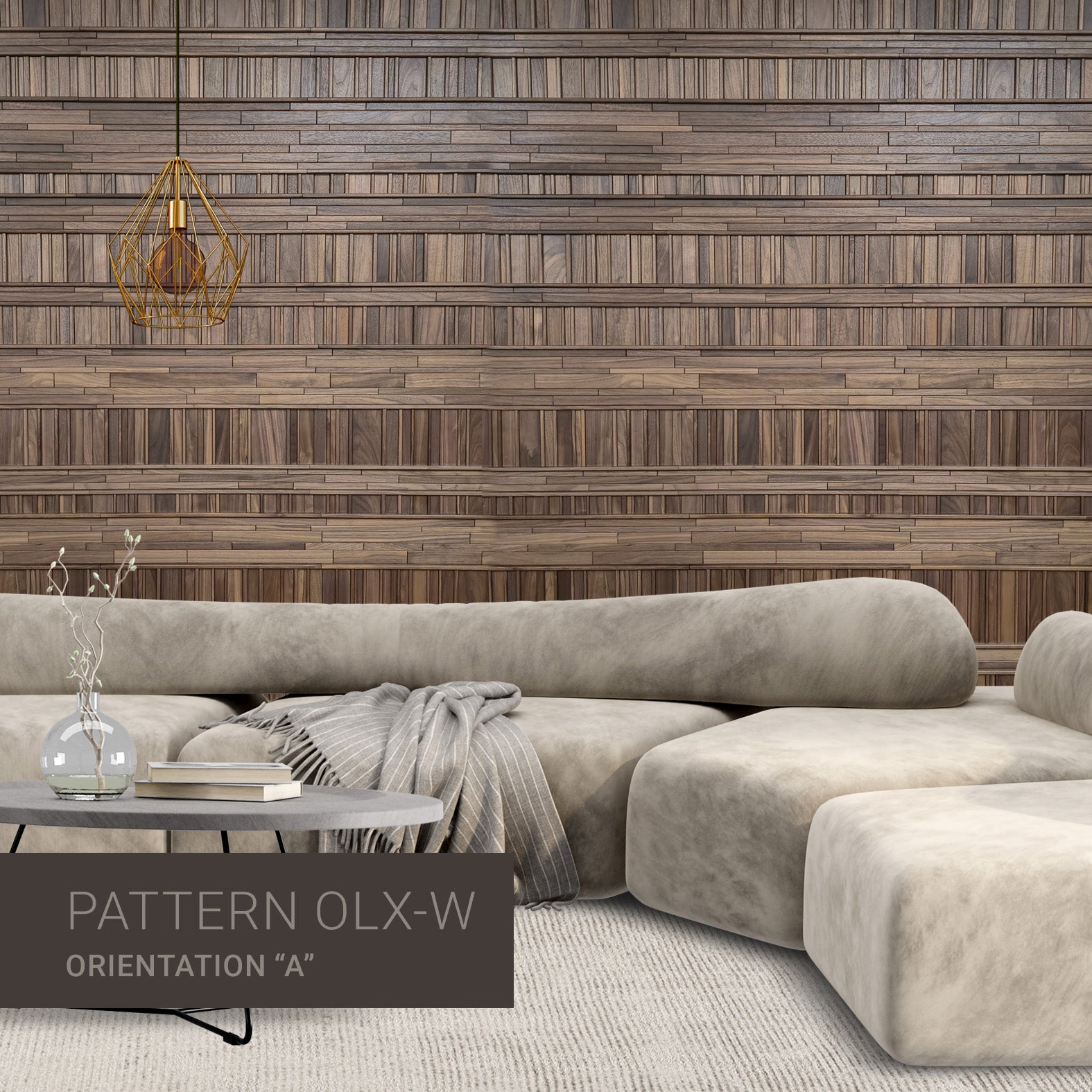

- Pattern & Construction (Orientation "A"):
- Vertical Pattern: Supplied as long reticular tiles
- Horizontal Pattern*: Supplied as interlocking tiles
- Element density - 380 per square meter (±50)
- Weight: 10kg/m² (±0.5kg)
Options:
OLV-W : Base option
- Finish: Semimat Hard wax oil / Danish oil (optional UV protection)
- Base: 6.5mm birch plywood (optional 9mm lightweight poplar plywood)
- Glue: MS Polymer

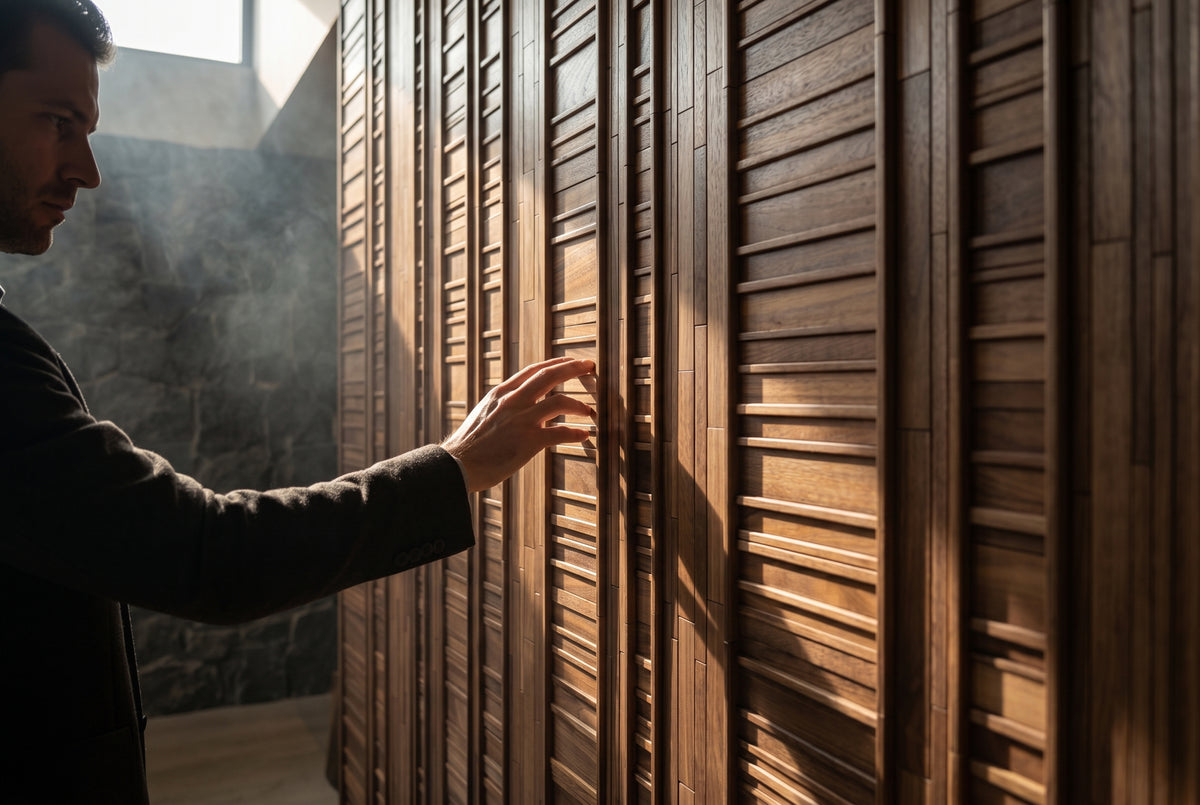

OLV-W-FR : Fire retardant
- Finish: Envirograf® QVFR 3 part system giving class 0 and class 1 EU SBI/B/s1/do and 20 minutes of fire protection. Durable top coat with UV protection. Matt.
(Optional: Rubio Monocoat FR Oil System, Bfl-s1 tested according to the standard EN 13501-1: EN ISO 11925-2 and EN ISO 9239-1)
- Base: 7mm poplar plywood, FR class 1B-s1,d0 EN13501.
- Glue: FR MS Polymer

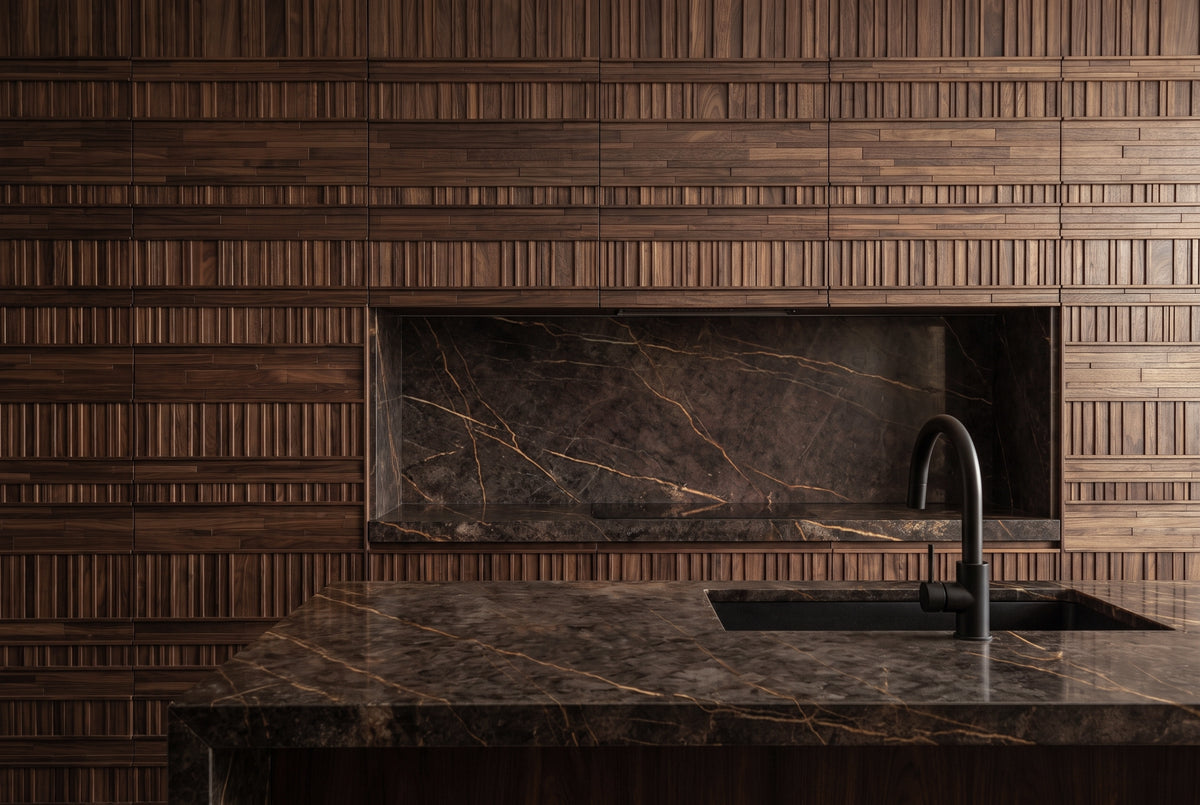

OLV-W-MR : Moisture resistant
- Finish: Base coat of Osmo Wood Protector, two top coats of semimat Osmo Hard Wax Oil (optional UV protection)
- Base: 6 or 9mm marine (or birch) plywood, sealed with a PVA coat.
- Glue: D3 PVA

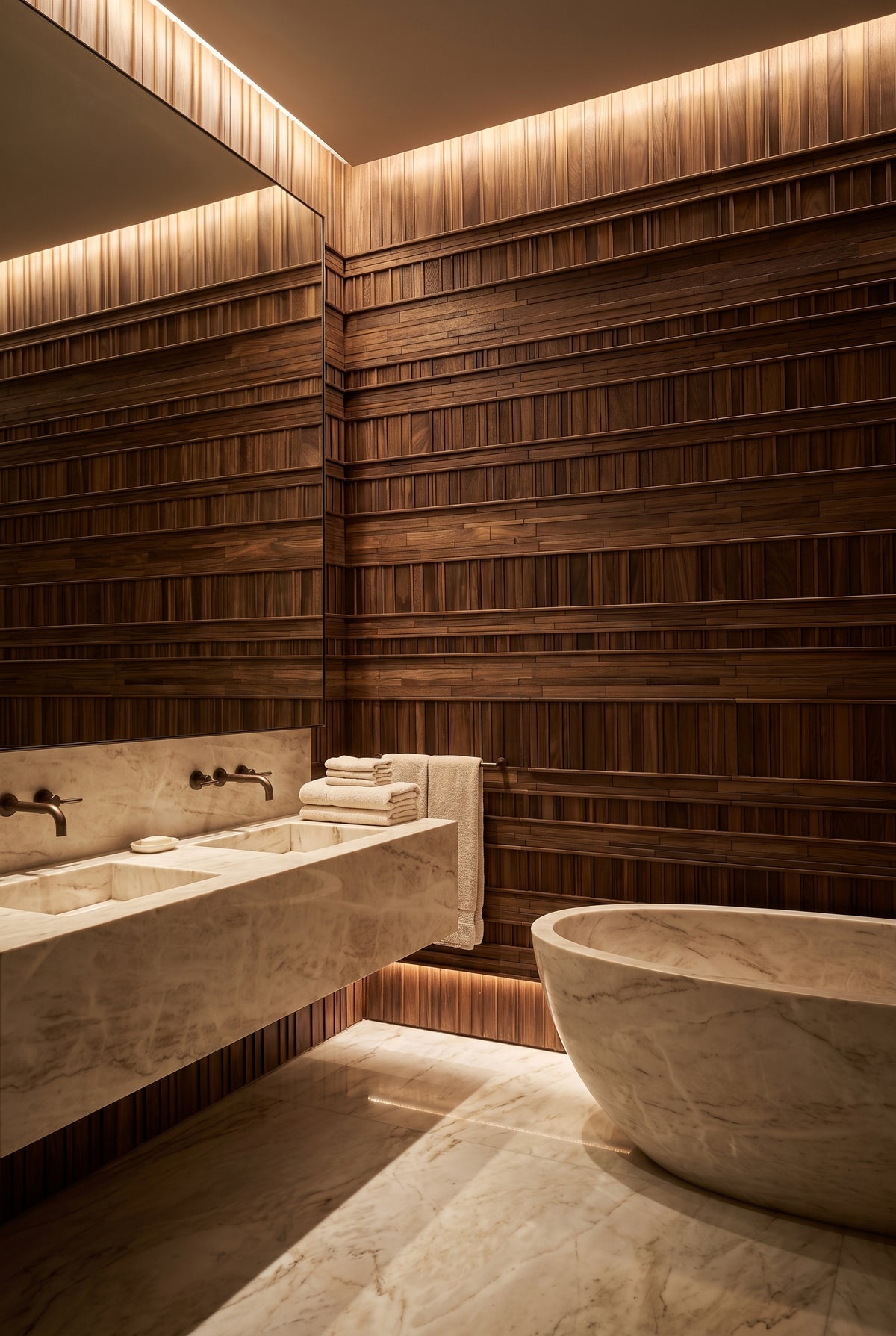

- suitable for interior areas where there is frequent, short term exposure to moisture and high humidity such as kitchens and bathroom applications in zones 2 and 3
OPTIONAL WALL PANEL - Made to measure large wall mountable panels are assembled on a 12 or 15mm thick plywood core. max size 1200 x 600 mm
Production time: approximately 1 day per square metre
We usually have small quantity available for immediate dispatch
We delivery to most countries, please contact us for an accurate quote.
These tiles can be manufactured from wood species and colours of your choice.
