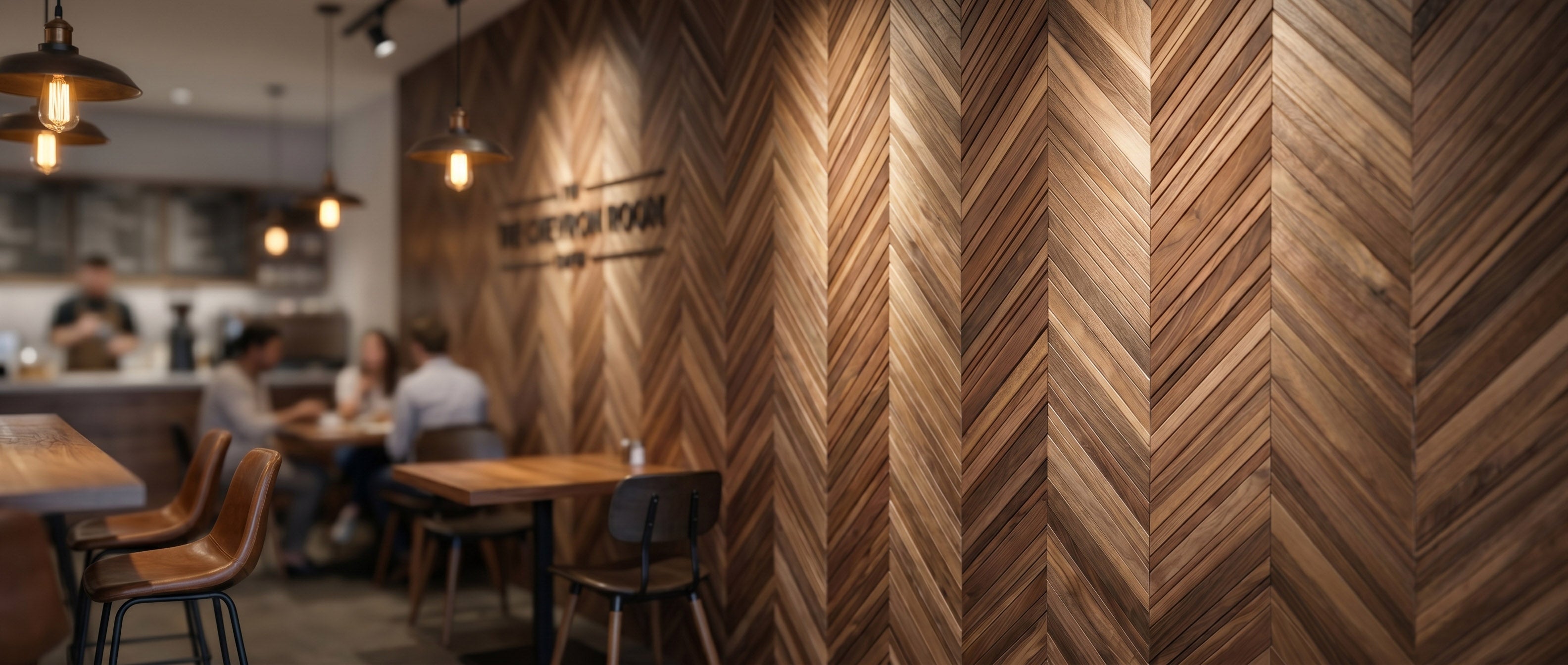

Wooden wall with a chevron pattern in a restaurant setting

Pattern CHV-W

Chevron as architecture.

Skip to product information

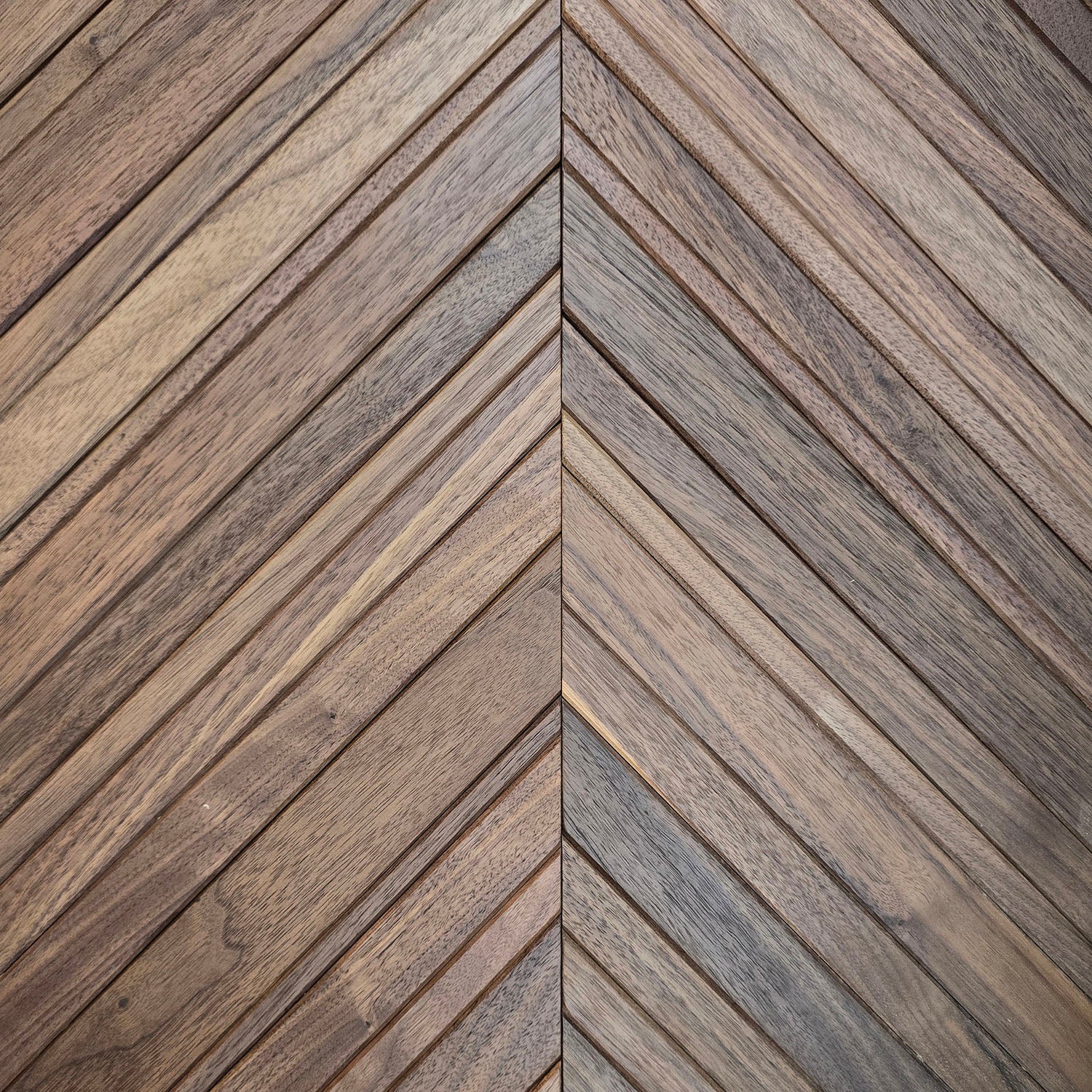

Wooden panel with a chevron pattern in brown tones
1/4
  • Wooden panel with a chevron pattern in brown tones
  • Modern living room with brown chevron-patterned wall, brown sofa, blue armchair, and wooden coffee table.
  • Modern hallway with wooden wall panels in chevron pattern and a console table. Pattern SKU CHV-W
  • Mannequins dressed in winter clothing against a wooden wall with decorative lights in a store setting.
Pattern CHV-W
£365.00 GBP
£365.00 GBP

Per M²

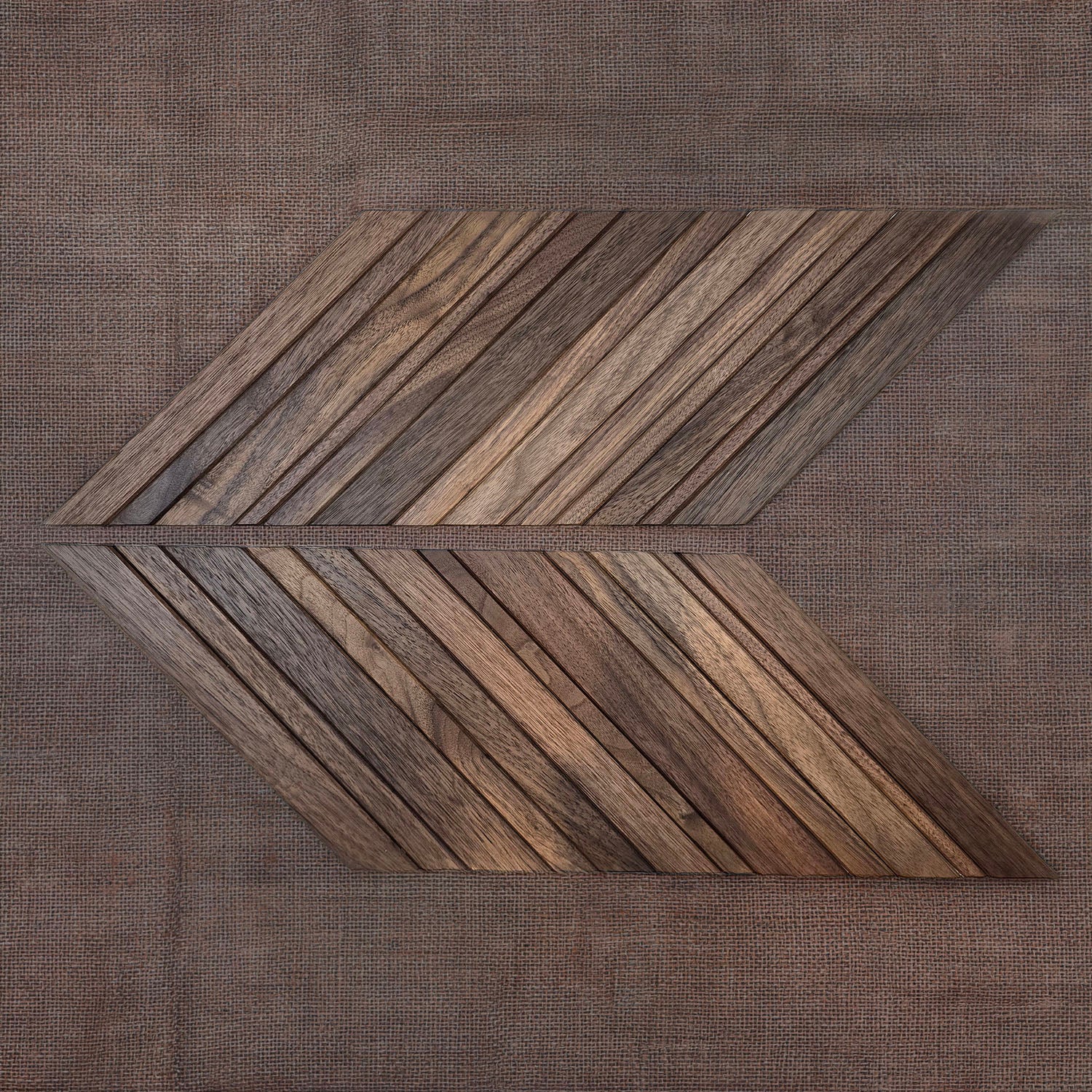

Chevron Wall Panel in Solid Walnut

The CHV-W is a chevron pattern wall panel built from solid walnut strips of  with random widths set at opposing angles. The geometry is the point. Each column of strips meets the next at a V, and because the grain on each side runs in a different direction, each column catches light differently.

Stand in front of the panel and one column reads light, the next reads dark. Move sideways, change the lamp, change the time of day — and the contrast magnifies, softens, or inverts. The pattern is never visually static.

Production time: approximately 1 day per square metre

    We delivery to most countries, please contact us for an accurate quote.

    These tiles can be manufactured from wood species and colours of your choice.

    Materials specifications

    Base Model

    Face material: solid American black walnut
    Finish: Hard wax oil (semi matt)
    Base    : 6.5 mm birch plywood (12 mm lightweight option available)
    Moisture Resistant

    Finish: Base coat of Osmo Wood Protector, two top coats of semimat Osmo Hard Wax Oil (optional UV protection)

    Base: 6 or 9mm marine (or birch) plywood, sealed with a PVA coat.

    Glue: D4 PVA

    Suited to: interior areas with frequent, short-term exposure to moisture and high humidity, such as kitchens and bathroom applications in zones 2 and 3
    Fire Retardant

    Two finishing options.Thermoguard Fire Varnishwhere UV protection is required; theRubio Monocoat FR Oil Systemotherwise — oil is the preferred finish, retaining the natural feel and tonal depth of the timber that a varnish would seal over.

    UV Finish: Thermoguard Fire Varnish (Euroclass B-s2,d0 · BS Class 0/1)
    OIL Finish: Rubio Monocoat FR Oil System, Bfl-s1 tested according to the standard EN 13501-1: EN ISO 11925-2 and EN ISO 9239-1
    Base:     7 mm (12 mm optional) lightweight poplar plywood, FR class B-s1,d0 to EN 13501
    Glue: FR MS Polymer

    FR specification subject to confirmation per project — full data sheets, certificate of supply, and adhesive TDS available on request.
    LEED upgrade

    Both the moisture-resistant and fire-retardant variants can be specified to meet LEED requirements. The upgrade coversFSC-certified hardwood,no-added-formaldehyde plywood, andlow-VOC adhesives and finishes— supporting credits in Materials & Resources (responsible sourcing, EPD/HPD) and Indoor Environmental Quality (low-emitting materials).

    Face material: FSC-certified American black walnut
    Base material: FSC-certified, no-added-formaldehyde
    Adhesive: low-VOC, SCAQMD Rule 1168 compliant
    Finish: VOC Free Rubio Monocoat C2 Oil (UV-protected option available)
    IMO Marine specification

    For installations on yachts and cruise ships, the IMO version, built with the materials tested at the standards required to support compliance with IMO 2010 FTP Code Part 5 (surface flammability). Test data and material declarations are supplied with the order. Final IMO / MED certification, class society approval, and flag-state acceptance are the buyer's responsibility — Artimatum is not a certifying body.

    Test basis: IMO 2010 FTP Code Part 5 surface flammability
    Optional test pack: FTP Code Part 2 smoke density and toxicity
    Supplied with the order: materials test certificate, declaration and technical data sheets
    Certification: issued by class society or notified body, instigated by the buyer (Artimatum supplies the test pack; the buyer obtains the certification
    Suited for: interior bulkheads, and feature walls on yachts and cruise ships.

    Final IMO / MED / class approval is obtained by the buyer through their nominated certifying body.

    We make things that work better and last longer. Our products solve real problems with clean design and honest materials.

    BASE MODEL SPECIFICATIONS:

    • Face material: solid oak strips with random widths and thicknesses (15 mm 75 wide 4-6mm thick)
    • Standard tile length: 520mm (±10mm tolerance)
    • Standard tile width 200mm (customisable range: 150 - 400 mm)
    • Element density - 130 per square meter (±20)
    • Weight: 10kg/m² (±0.5kg)
    • Material: solid American black walnut
    • Element density: 150 per square meter.

    Contact us for production and lead times.

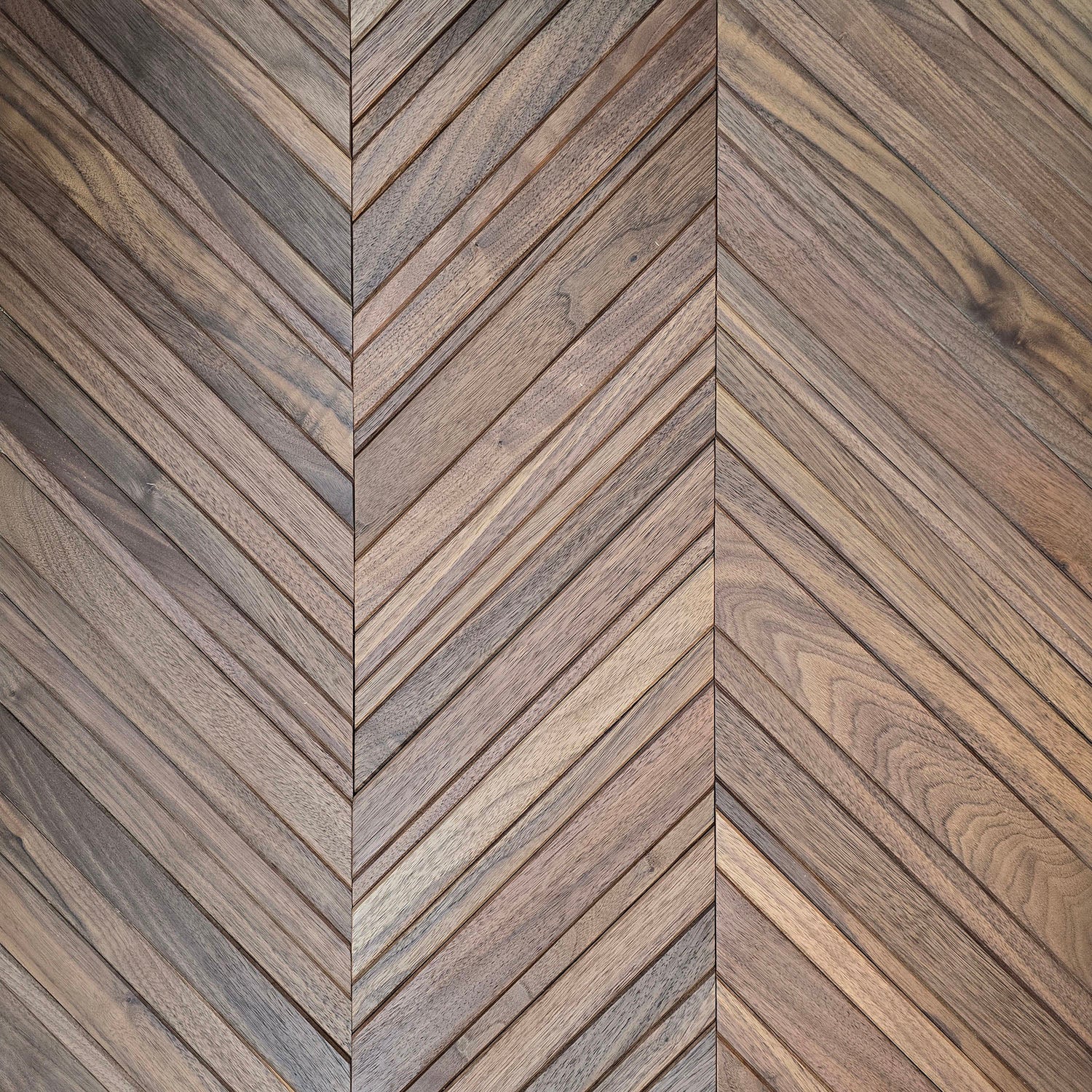

    Wooden panel with a chevron pattern in walnut

    Pattern options

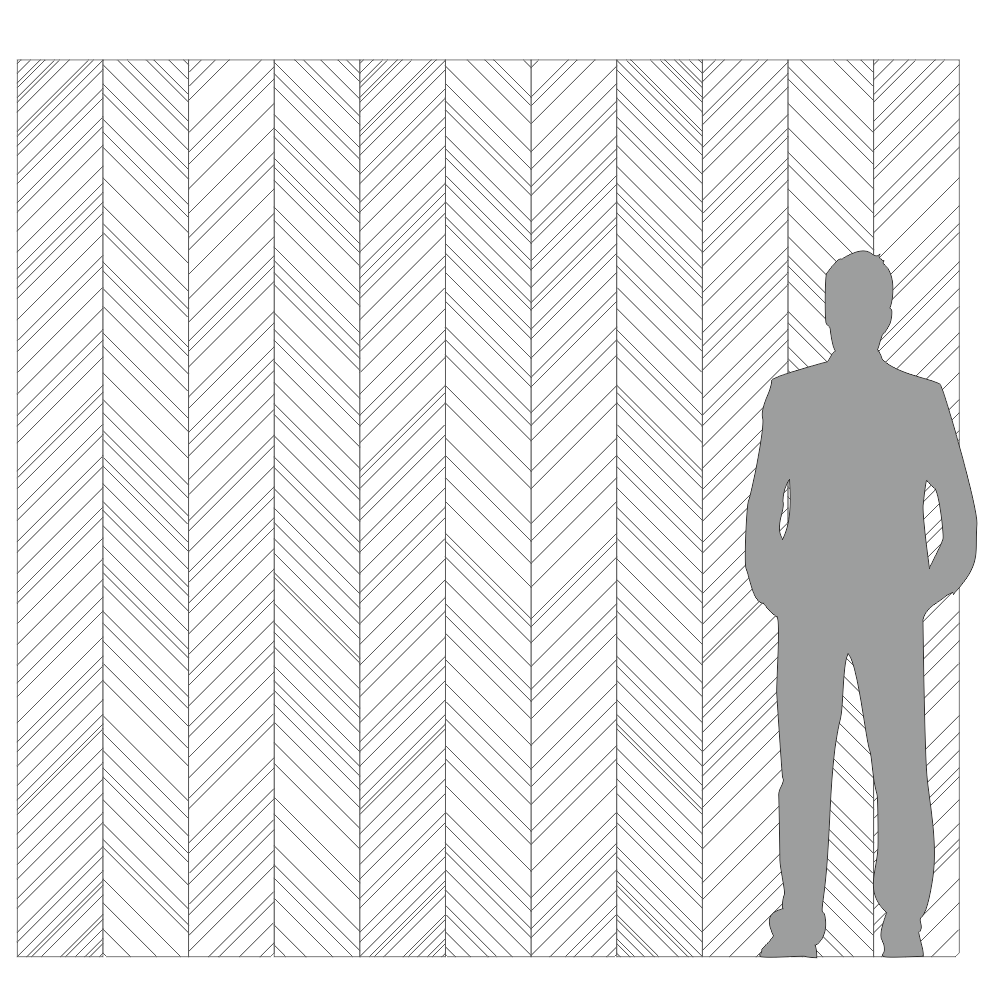

    Three things shape the finished wall
    the tile itself, the way it's installed, and what it's combined with.

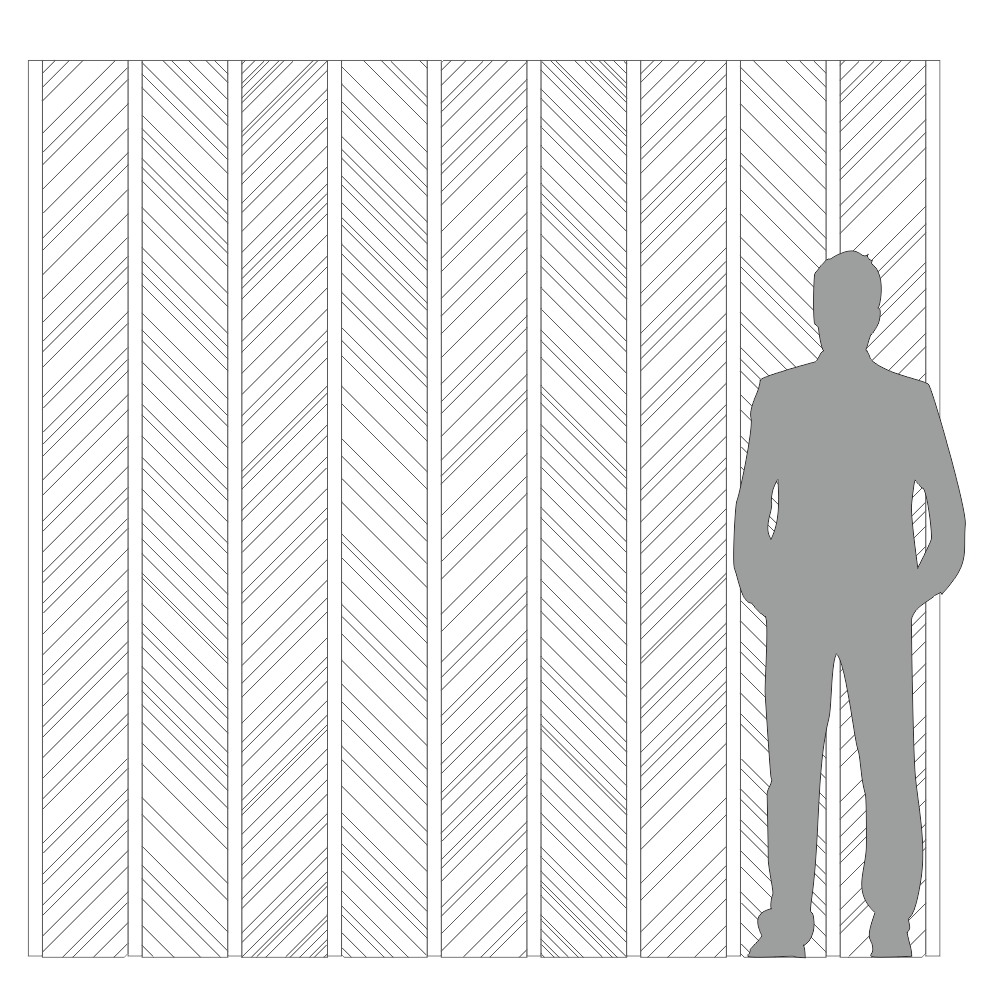

    Spacing

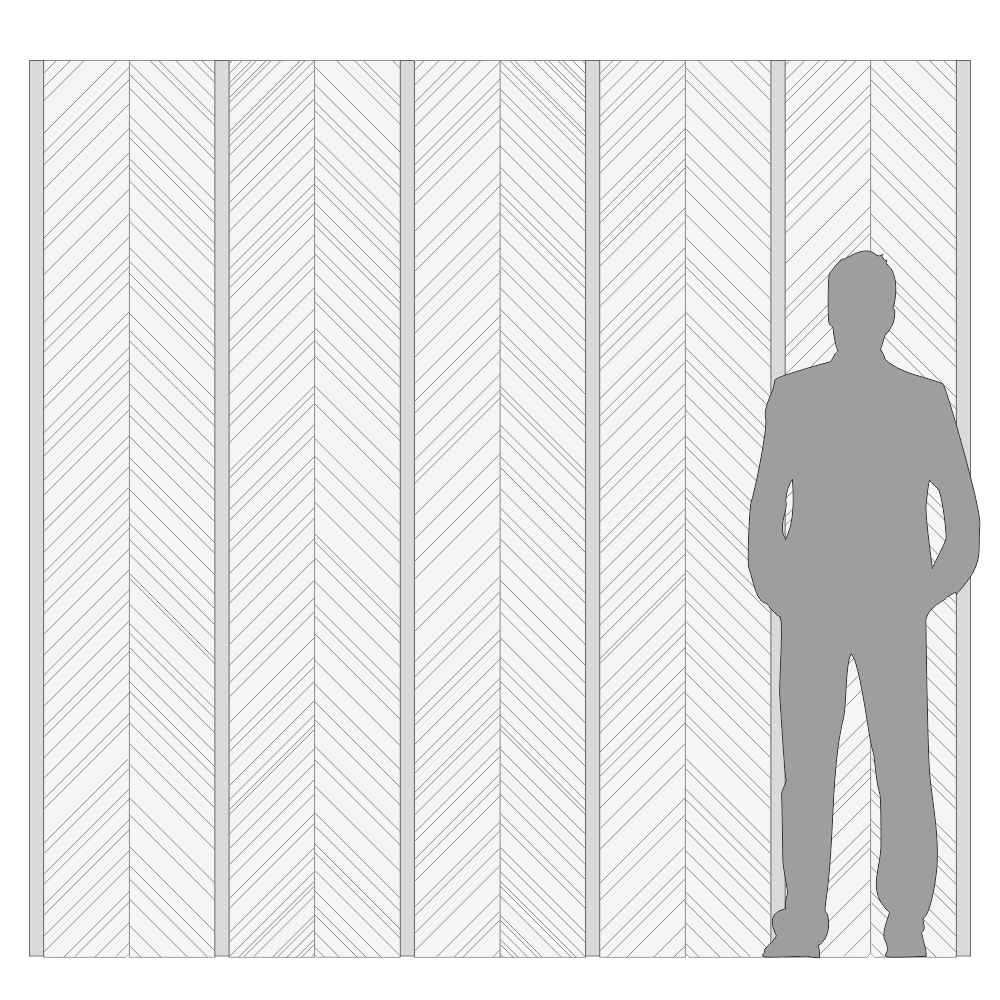

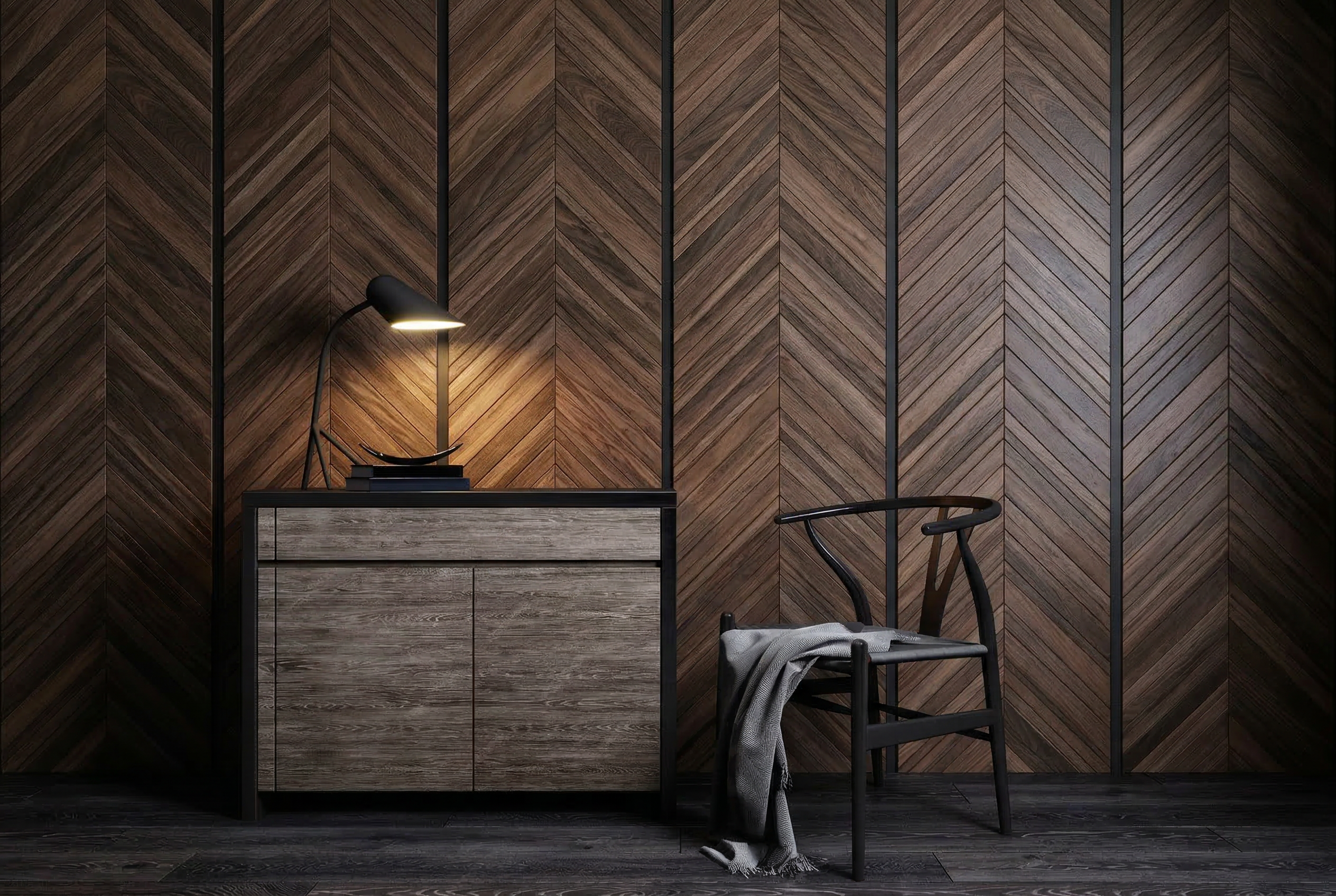

    Tiles install flush for a continuous chevron field, or with spacing between columns to break the pattern into discrete bays. The reveal is colour-filled (painted, any tone) or filled with contrasting wooden slats. Spaced tiles are built with a recessed plywood backing — a different build from the flush standard.

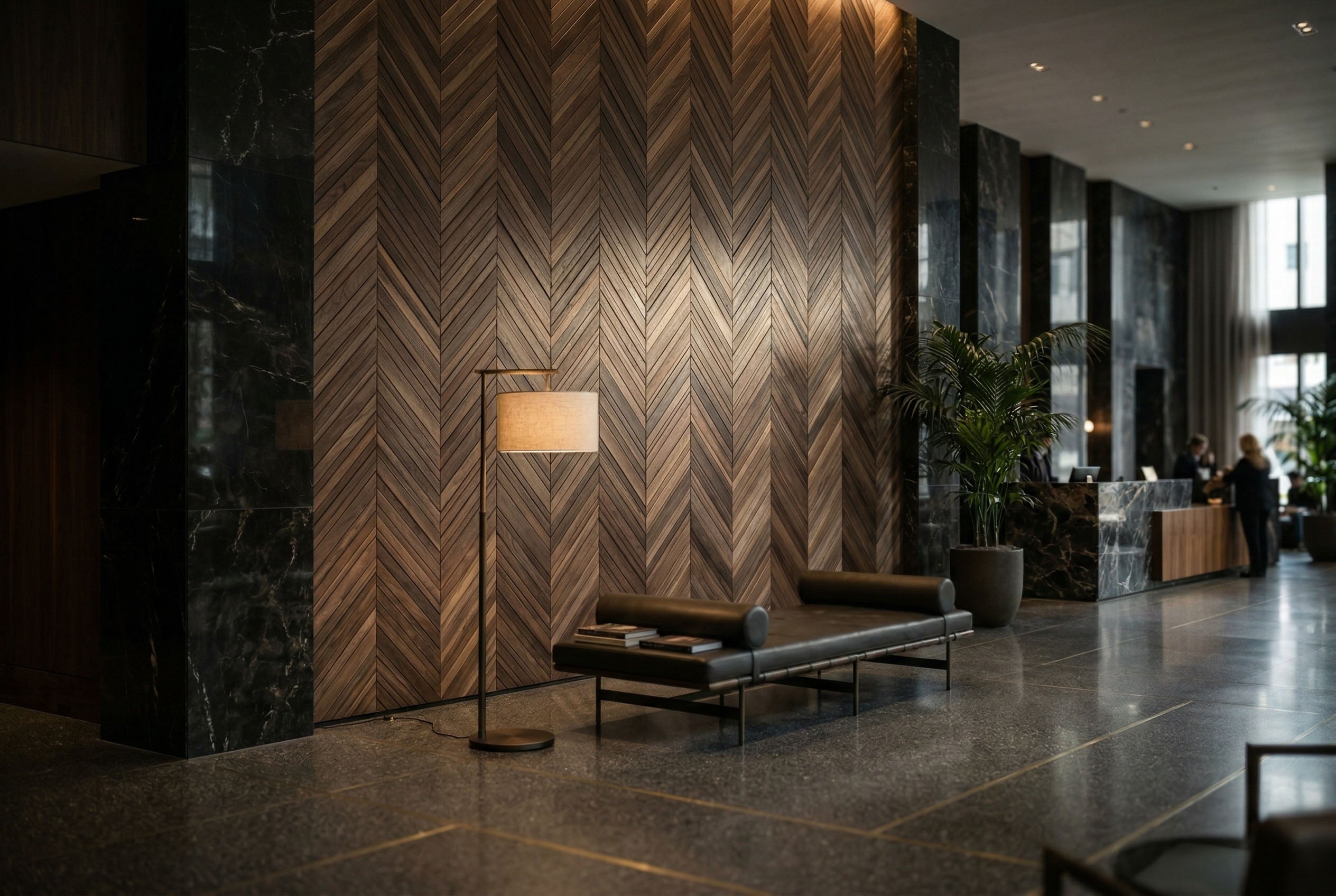

    Luxurious interior of a hotel lobby with wooden wall paneling and modern furniture.

    Column and tile width

    (customisation options)

    Column widths can be customised to suit the installation space — wider columns for large, tall walls, narrower columns for residential interiors. Tile width within each column sets the density. Both chosen at order.

    Vertical linear sections

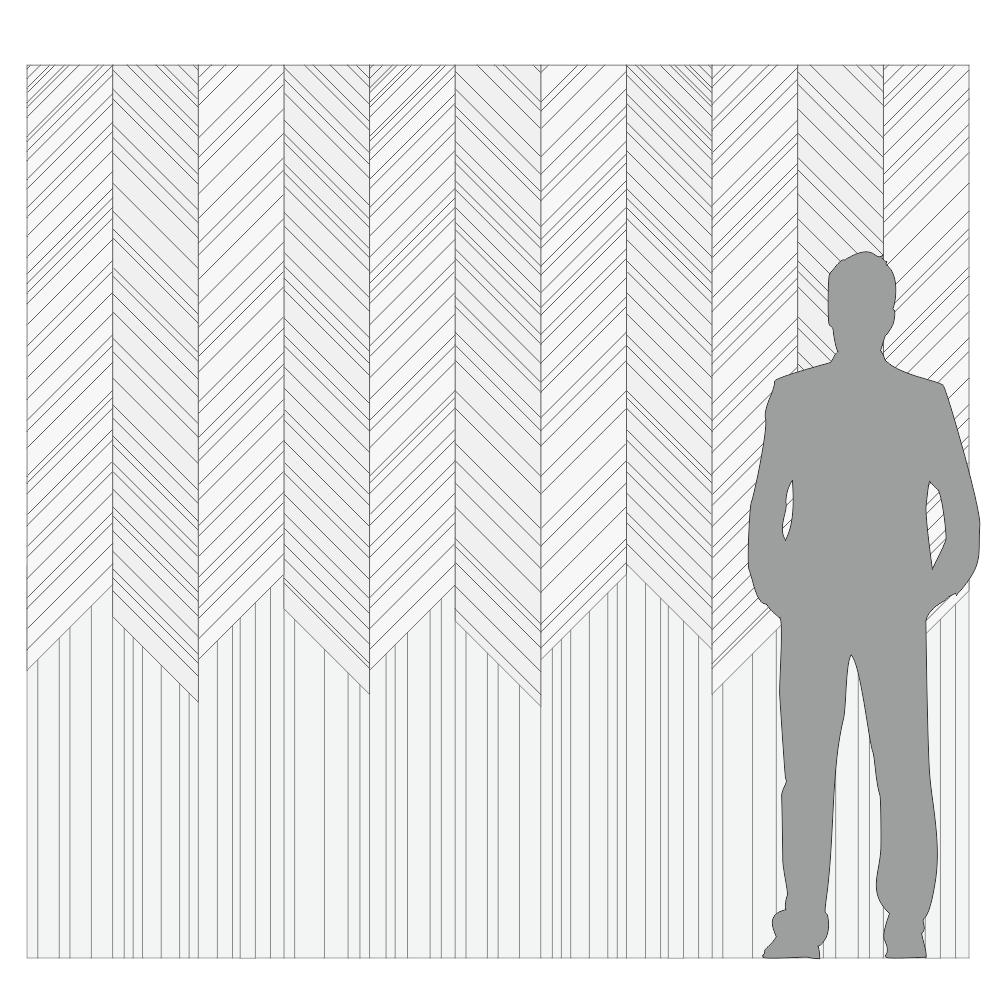

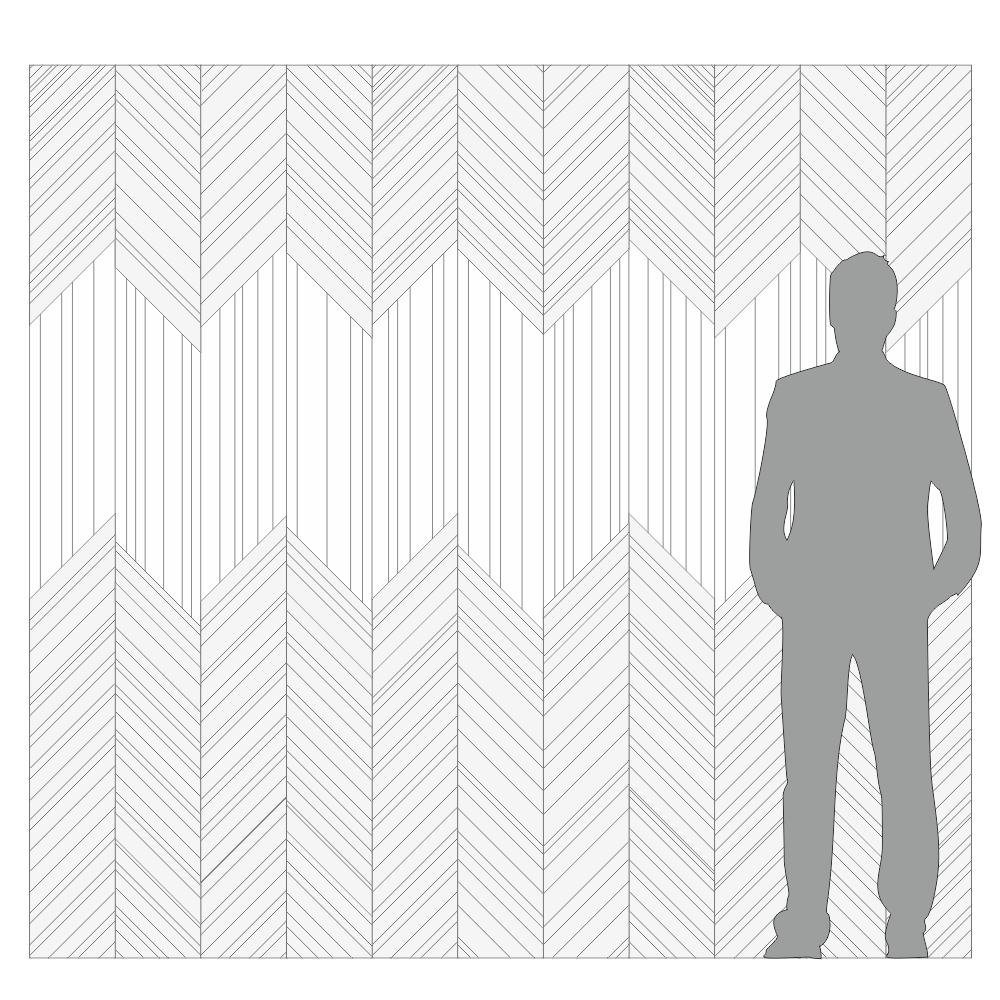

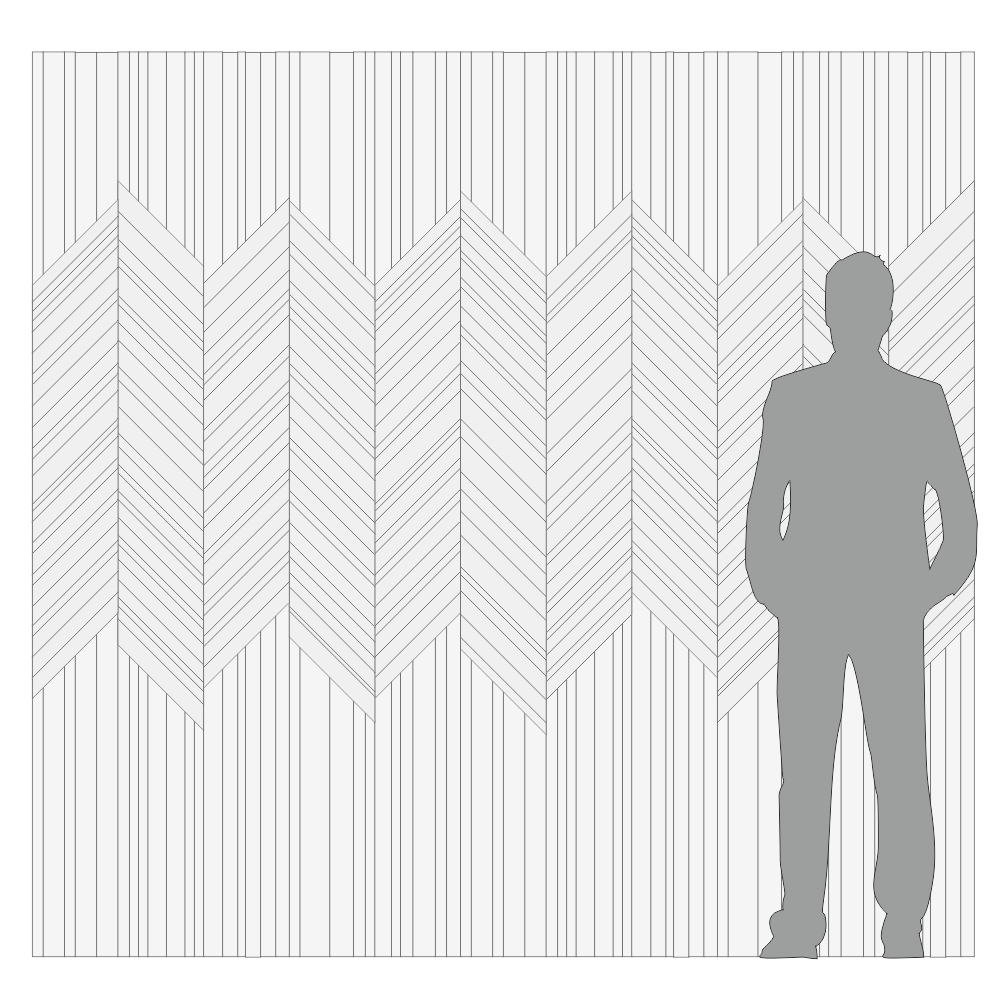

    For layered, two-pattern compositions, CHV-W combines with plain vertical-strip sections — installed alongside the chevron as a base band, top band, mirrored across a centre band, or interior zone. Sold as a separate product.

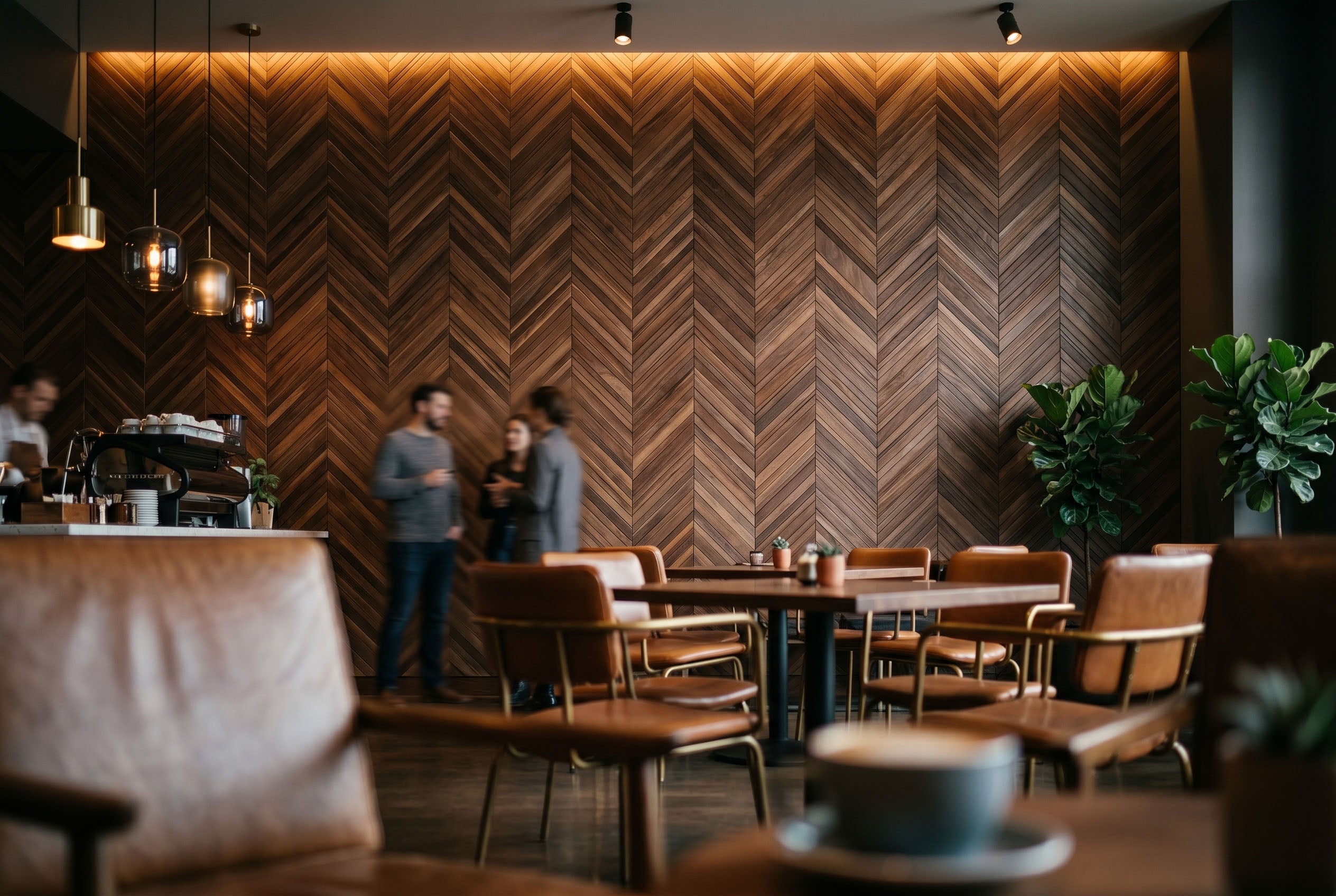

    Modern cafe interior with wooden wall pattern and patrons.

    Handmade in the Royal Town of Sutton Coldfield, England.
